Features

Specifications

Viewing Angle: 6 O'clock

Fpc: 34pin

Lcd Type: STN(Blue), Negative

Interface Type: 8-bit Parallel, SPI

Storage Temperature: -20°C To 70°C

Drive Method: 1/64 Duty, 1/7 Bias

Backlight Type: LED

Operating Voltage: 2.8V

Highlight:

2.15 Inch Graphic LCD Screen

34PIN Soldering FPC LCD Display

6 O'clock Viewing Angle COG LCD Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

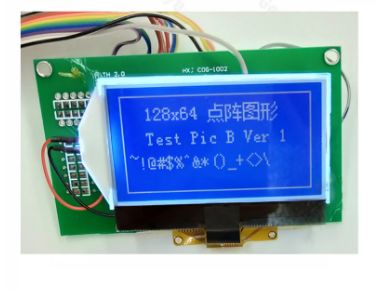

2.15 Inch 128x64 Graphic LCD Screen with 34PIN Soldering FPC and 6 O'clock Viewing Angle

Product Description

2.15 Inch 128x64 Graphic LCD Screen with 34PIN Soldering FPC and 6 O'clock Viewing Angle

2.15-inch 128x64 graphic LCD screen with STN technology, white on blue, 34-pin soldered FPC interface.

Technical Specifications

LCD Type	STN(Blue), Negative
Viewing Angle	6 O'clock
Operating Temperature	-10~+60℃
FPC	34pin
Driver IC	ST7567
Voltage	2.8V

Key Features

Resolution: 128×64 pixels for displaying graphics, text, or basic icons
Graphical LCD: Capable of displaying custom graphics with versatile drawing capabilities
Backlighting: LED backlight (white) enhances contrast in low-light environments
Interface Options: Supports both 8-bit parallel and SPI serial interfaces
COG Technology: Driver IC mounted directly on glass reduces footprint

Detailed Parameters

Product Name	COG Graphic LCD Display
Polarizer Type	Transmissive
Drive Method	1/64 Duty, 1/7 Bias
Storage Temperature	-20~+70℃
FPC Pitch	0.8 mm
Backlight Type	1-LED, White
Outline Dimension	65.0×38.6×4.9 mm
View Area	53.6×28.6 mm

Product Advantages

High Contrast: STN technology with multi-domain interference effect achieves contrast up to 100:1
Low Power Consumption: As low as 0.05mW/cm², ideal for battery-powered devices
Wide Temperature Range: Operates from -20°C to 70°C (some models -40°C to 90°C)
Cost Effective: More affordable than TFT screens with simpler manufacturing process
Easy Connection: 34PIN soldered FPC interface for flexible and reliable connections

Our Services

1-year free repair warranty
30-day replacement policy for defective products
Custom logo and model number printing available
Competitive shipping rates with reliable carriers
Professional technical support and after-sales service
Rigorous quality inspection before shipment
Custom LCD display solutions based on your specifications

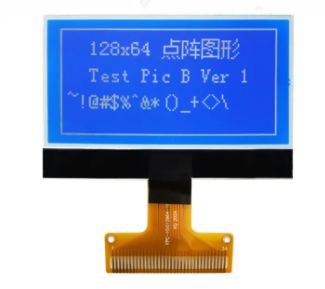

2.15 Inch 128x64 Graphic LCD Screen with 34PIN Soldering FPC and 6 O'clock Viewing Angle 2
