Home /Products/IPS TFT LCD Display/8 Inch IPS TFT LCD Module 800 * 1280 MIPI LCD Panel Capactive Touchscreen Monitor

8 Inch IPS TFT LCD Module 800 * 1280 MIPI LCD Panel Capactive Touchscreen Monitor

1000
MOQ
DISCUSSABLE
Price
8 Inch IPS TFT LCD Module 800 * 1280 MIPI LCD Panel Capactive Touchscreen Monitor
Features Gallery Product Description Request A Quote
Features
Specifications
Backlight Type: LED
Optimum Resolution: 800*1280
Input Voltage: 2.8~3.3V
View Direction: ALL
Commodity: 8 Inch Color Display
Specification: Rohs ISO9001
Backlight Color: White
Lcd Type: Tft Lcd Panel
Highlight:

8 inch IPS TFT LCD module

,

MIPI LCD panel with touchscreen

,

800x1280 capacitive touchscreen monitor
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
8 Inch IPS TFT LCD Module 800 × 1280 MIPI LCD Panel Capacitive Touchscreen Monitor
Product Overview

High-quality 8-inch IPS TFT LCD module featuring 800 × 1280 resolution with MIPI interface and optional capacitive touchscreen.

Key Specifications
Parameter Value
Resolution 800 (RGB) × 1280
Size 8.0 Inch
Viewing Direction All
TFT Mode TFT, Transmissive
Detailed Technical Specifications
Item Content Description
1 Display outline size 114.6 (W) × 184.1 (H) × 2.6 (D)
2 VA size 107.64 (W) × 172.24 (H)
3 Resolution 800 RGB (H) × 1280 (V)
4 With/Without Touch screen RTP / CTP Or Without Option
5 Interface MIPI 4 Lanes
6 Brightness 350cd/m²
7 Color 16.7 M Colors
8 Pixel Pitch 0.13455(W) × 0.13455(H)
Product Images

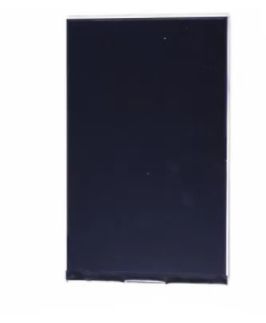

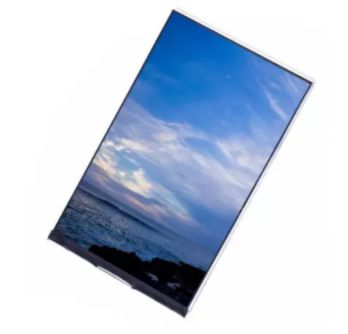

8-inch IPS TFT LCD module front view 8-inch IPS TFT LCD module side view Technical diagram of LCD module Display performance demonstration
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, varying by country regulations.

Standard packaging example

Shipping: Available via DHL, FedEx, EMS, UPS, air shipping, or sea shipping. Customer can choose preferred method.

Shipping options illustration
Payment Method
Accepted payment methods
