3.5 Inch IPS TFT LCD Module High Brightness Landscape With 16 / 18 / 24 Bit RGB Interface

1000
MOQ
DISCUSSABLE
Price
3.5 Inch IPS TFT LCD Module High Brightness Landscape With 16 / 18 / 24 Bit RGB Interface
Features Gallery Product Description Request A Quote
Features
Specifications
Port: Shenzhen
Application: Industrial, Medical And Smart Products
Type: TFT, TFT LCD
Interface Type: RGB
Luminance: 200cd/㎡
Backlight Type: LED
Highlight:

3.5 inch IPS TFT LCD module

,

high brightness TFT LCD display

,

RGB interface LCD module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
3.5 Inch IPS TFT LCD Module High Brightness Landscape With 16 / 18 / 24 Bit RGB Interface
High-performance 3.5-inch IPS TFT LCD display module featuring excellent brightness and versatile RGB interface options for industrial applications.
Key Specifications
Resolution 320 × 240 Dots
Size 3.5 Inch
Viewing Direction 6 O'Clock
TFT Mode TFT, Transmissive
Outline Size 76.90 mm × 63.90 mm × 4.3 mm
Brightness 200 Cd/M²
Detailed Product Features
Item Contents Description
1 Product Name 3.5 Inch 320 × 240 Dot TFT LCD Display Module
2 Module Size 76.90 mm × 63.90 mm × 4.3 mm T
3 Resolution 320 × (RGB) × 240
4 Touch Resistive TP
5 Light Source 6-DIES WHITE LED
6 Interface Type 18BIT RGB + SPI
7 Colors 262K
8 Controller/Driver SSD2119

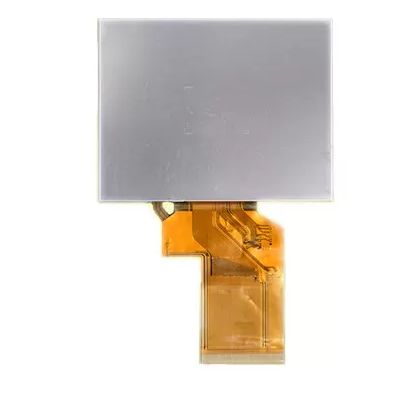

3.5 Inch IPS TFT LCD Module front view

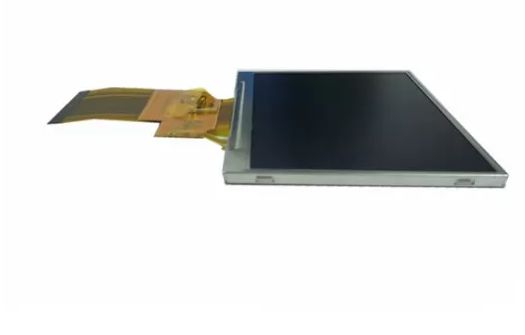

3.5 Inch IPS TFT LCD Module side view
Technical diagram of 3.5 Inch IPS TFT LCD Module
Interface specifications of 3.5 Inch IPS TFT LCD Module
Pin configuration of 3.5 Inch IPS TFT LCD Module

3.5 Inch IPS TFT LCD Module High Brightness Landscape With 16 / 18 / 24 Bit RGB Interface
