4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display

1000
MOQ
DISCUSSABLE
Price
4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display
Features Gallery Product Description Chat Now
Features
Specifications
Name: 4.3 Inch TFT LCD Display
Warranty: 24 Months
Display Area: 68.04(H)x120.96(V)mm
Backlight Type: LED
Lcd Type: IPS
Brightness: 250 Nits
Pixel Pitch: 0.252mm
Highlight:

4.3 inch TFT LCD Display Module

,

IPS TFT LCD Display Module

,

Transmissive LCD Display Screen

Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display
General Specifications
Items Specification Unit Note
Display area(AA) 95.04(H) * 53.86(V) (4.3 inch) mm -
Driver element a-Si TFT active matrix - -
Display colors 16.7M colors -
Color Gamut 50 -
Number of pixels 480(RGB) *272 dots -
Pixel arrangement RGB vertical stripe - -
Pixel pitch 0.198(H) *0.198(V) mm -
Viewing angle 6:00 o'clock -
Drive IC ILI6480Q - -
Display mode Transmissive/ Normally White - -
Operating temperature -20~+70 -
Storage temperature -30~+80 -
Mechanical Information
Item Min. Typ. Max. Unit Note
Module size (Horizontal) - 105.5 - mm -
Module size (Vertical) - 67.2 - mm -
Module size (Depth) - 4.15 - mm -
Weight - TBD - g -
BIBUKE TFT LCD Module Series
  • Our standard TFT LCD Module sizes: 1.44'', 1.77", 2.0", 2.4", 2.8", 3.2", 3.5", 4"(3.97"), 4.3", 5", 7", 8", 9'', 10.1"
  • Developed 4.0''(3.97'') LCD module with IPS glass
  • Developed 2.4'' to 7.0'' TFT LCD with ZIF FPC connection
  • Standard CTP for 3.2'', 3.5'', 4.3", 5.0", 7'', 8'', 10.1''
  • High transmittance RTP for 4.3" and 7"
  • Customized CTP available

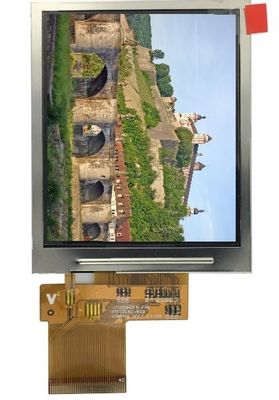

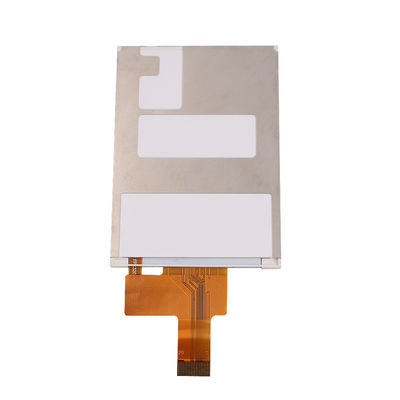

4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display 0 4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display 1
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.

4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display 2

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Customer can choose preferred method.

4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display 3
Payment Method
4.3 inch IPS TFT LCD Display Module Normally White / Transmissive LCD Display 4
Frequently Asked Questions
  • Q: I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
    A: Please send your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
  • Q: This LCD is too large, do you have smaller sizes?
    A: For segment type LCD modules requiring size or content modification, new tooling would be required.
  • Q: Can you make STN type instead of HTN?
    A: Yes, we can modify the display type per your request.
  • Q: Can you customize a new LCD module?
    A: Yes, please provide your drawing or specifications including outline size, display information, and technical requirements.
  • Q: What is the lead time for tooling?
    A: Typically 15-25 days after drawing confirmation and tooling payment.
  • Q: Can you send samples?
    A: Yes, sample orders are available.
  • Q: What is the lead time?
    A: 1 day for standard products in stock, 15-30 days for mass production of special orders.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo and model number printing available
  • Discounted shipping rates through established partnerships
  • Professional technical support and after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display solutions based on your specifications
Product Applications
  • Household appliances: Refrigerators, air conditioners, washing machines, microwave ovens, etc.
  • Communication equipment: Telephones, interphones, fax machines, wireless devices
  • Automotive electronics: Entertainment systems, navigation, cameras, anti-theft devices
  • Instruments: Water meters, electric meters, multimeters, analytical instruments
  • Fitness equipment: Treadmills, fitness bikes, electronic scales
  • Financial: POS machines, tax control devices, banknote counters
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators

Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation
