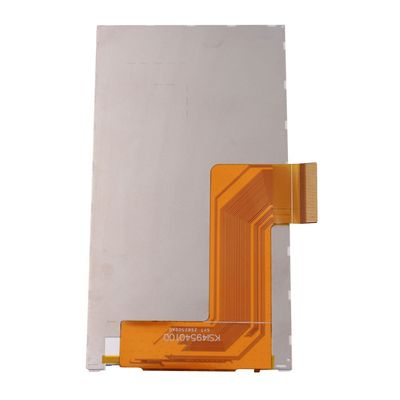

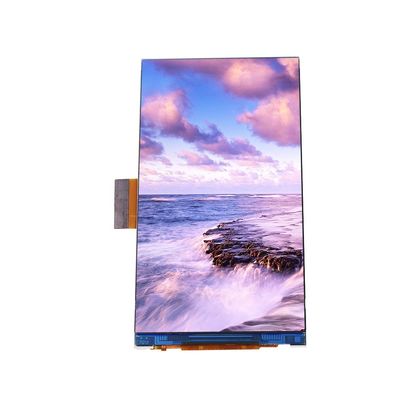

Full View 24 Pin RGB IPS TFT LCD Display Screen 64.46*117.40 480x854 K495I40100
Product Overview
Full View 24 Pin 64.46*117.40 480*854 K495I40100 RGB IPS TFT Display Screen
General Specifications
| Item |
Standard Value |
| Display format |
480 * RGB * 854 |
| Outline Dimension |
65.30(W)* 119.30(H) * 2.1±0.1(T) |
| LCD Size |
64.46*117.40 |
| Display area |
61.56*109.53 |
| Pixel size |
0.12825*0.12825 |
| Display mode |
Normal Black |
| Pixel component |
R.G.B Stripe |
| Arrangement |
RGB |
| LCD MODEL |
a-Si TFT |
| DRIVE IC |
ST7701S |
| FPC |
--- |
Pin Assignments
| PIN |
Pin Definition |
Function Declaration |
| 1 |
LEDK |
Cathode of backlight |
| 2 |
LEDA |
Anode of backlight |
| 3 |
GND |
Ground |
| 4 |
VCC |
Connect to an external power supply of 2.5 ~ 3.3V |
| 5-12 |
R7-R0 |
Data bus |
| 13-20 |
G7-G0 |
Data bus |
| 21-28 |
B7-B0 |
Data bus |
| 29 |
DGND |
Ground |
| 30 |
DCLK |
DPI: Dot clock signal Fix to DGND level when not in use |
| 31 |
DISP |
NC |
| 32 |
HSNC |
DPI: Line synchronizing signal Fix to DGND level when not in use |
| 33 |
VHSYNC |
DPI: Frame synchronizing signal Fix to DGND level when not in use |
| 34 |
DE |
DPI: A data ENABLE input signal Fix to DGND level when not in use |
| 35 |
NC |
NC |
| 36 |
GND |
Ground |
| 37 |
RESET |
Reset signal, keep Low for more than 10ms after power-on |
| 38 |
SDI |
SDA: Serial data input/output bidirectional pin for SPI Interface. Fix to DGND level when not in use |
| 39 |
SCL |
SCL: Serial clock input for SPI |
| 40 |
CS |
Chip select input signal Low: the chip is selected and accessible High: the chip is not selected and not accessible |
