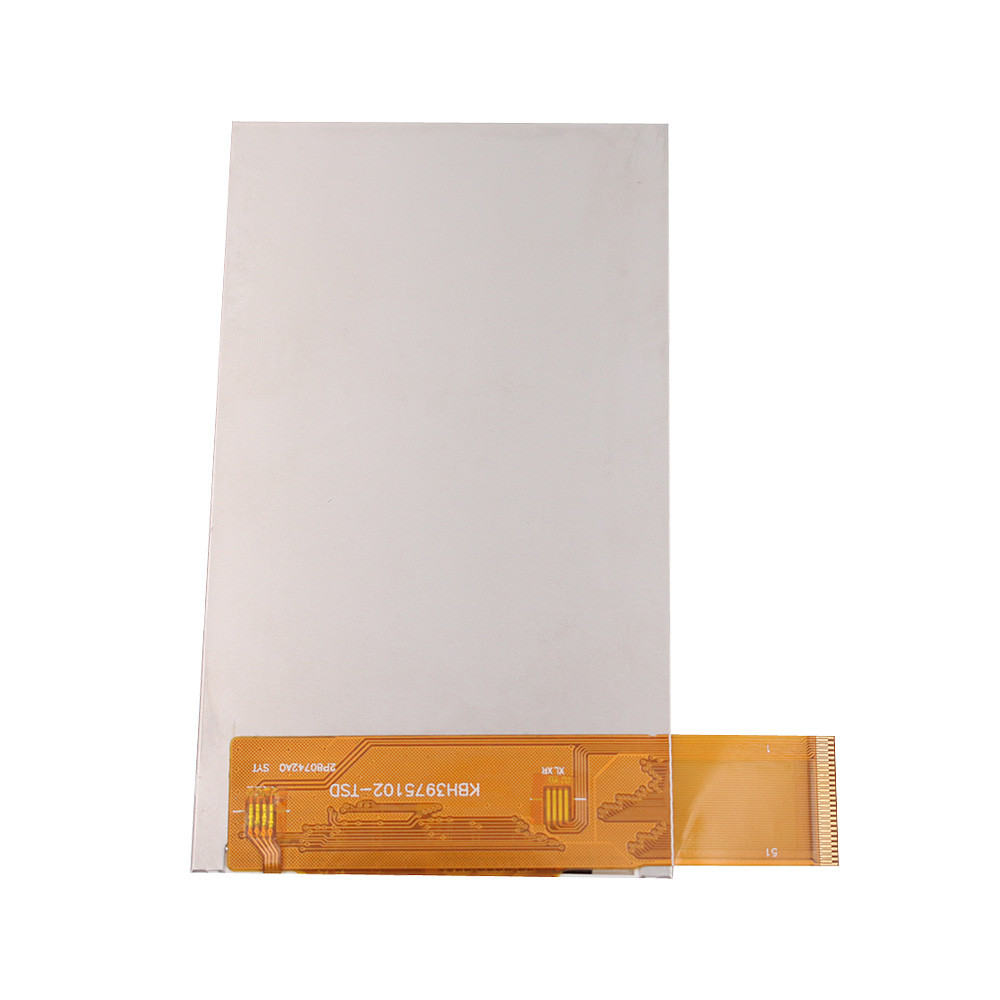

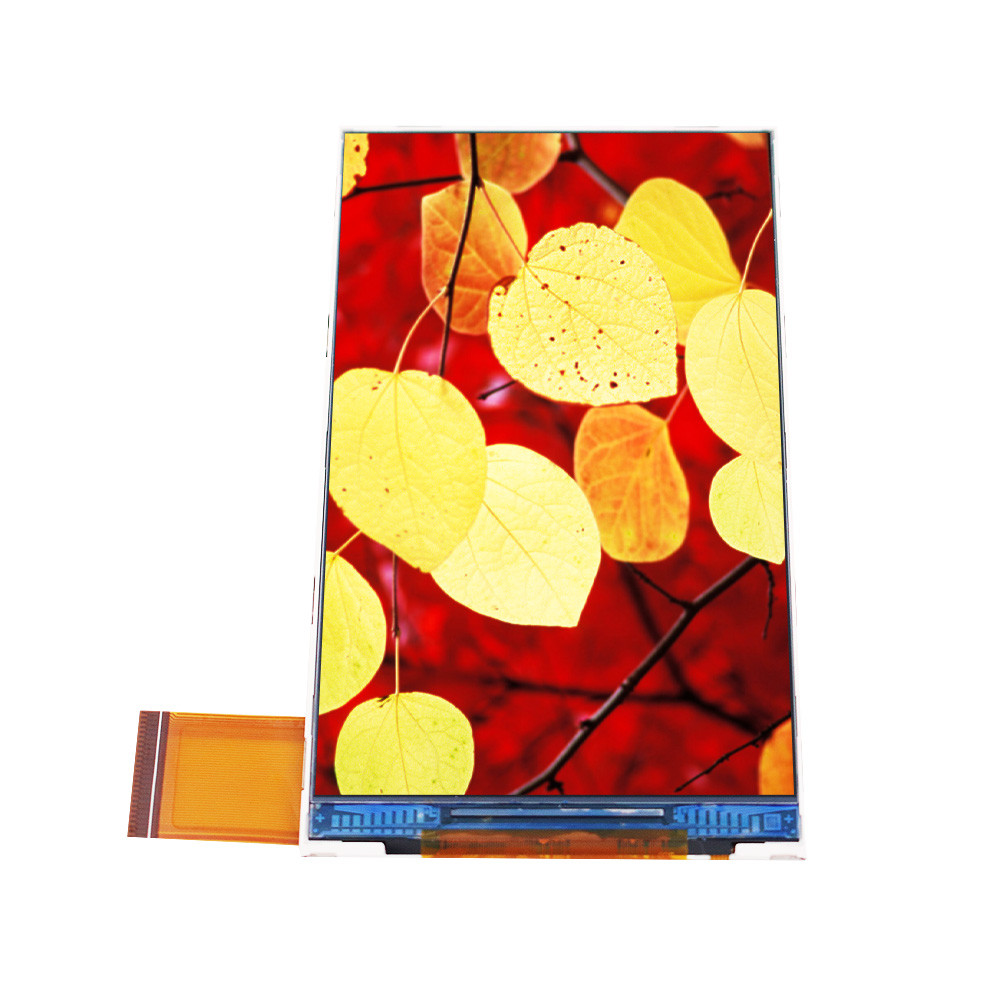

Anti Glare IPS TFT LCD Display Screen 3.97" K397H5102T ILI9806E-2
Product Overview
High-quality 3.97" Anti Glare IPS TFT LCD Display with ILI9806E-2 driver IC, featuring 480(RGB)×800 resolution and wide viewing angles.
Key Features
| Item |
Standard Value |
| Display Format |
480(RGB) × 800 |
| LCD Type |
TFT, Transflective, Positive |
| Viewing Direction |
ALL |
| Backlight |
White LED |
| Interface |
RGB |
| Driver IC |
ILI9806E-2 |
Mechanical Specifications
| Item |
Standard Value |
Unit |
| Outline Dimension |
57.14 (W) × 96.85 (L) × 3.25(H)(Max) |
mm |
| Active Area |
51.84 (W) × 86.4 (L) |
mm |
| Dot Size |
0.108 (W) × 0.108 (L) |
mm |
For detailed information please refer to LCM drawing
Absolute Maximum Ratings (Ta=25℃ VSS=0V)
| Item |
Symbol |
Min. |
Type |
Max. |
Unit |
Humidity |
| Supply Voltage for Logic |
VCI |
-0.3 |
-- |
4.6 |
V |
-- |
| IOVCC |
|
-0.3 |
-- |
4.6 |
V |
-- |
| Power Supply for LCD |
VGH-VGL |
-0.3 |
-- |
32 |
V |
-- |
| Operating Temperature |
TOP |
-20 |
-- |
70 |
°C |
Note1 |
| Storage Temperature |
TST |
-30 |
-- |
80 |
°C |
Note2 |
Note1: Background color changes slightly depending on ambient temperature. This phenomenon is reversible.
Ta≦70℃: 75%RH max
Ta>50℃: absolute humidity must be lower than the humidity of 75%RH at 50℃
Note2: Ta at -10℃ will be <48hrs, at 60 ℃ will be <120hrs when humidity is higher than 75%RH. Ta≦60℃: 75%RH max
Ta>60℃: absolute humidity must be lower than the humidity of 75%RH at 60℃
BIBUKE TFT LCD Module Series
- Our standard TFT LCD Module sizes: 1.44'', 1.77", 2.0", 2.4", 2.8", 3.2", 3.5", 4"(3.97"), 4.3", 5", 7", 8", 9'', 10.1"
- Developed 4.0''(3.97'') LCD module with IPS glass
- Developed 2.4'' to 7.0'' TFT LCD with ZIF FPC connection
- Standard CTP for 3.2'', 3.5'', 4.3", 5.0", 7'', 8'', 10.1''
- High transmittance RTP for 4.3" and 7"
- Customized CTP available
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements. Different countries may have specific requirements.
Shipping: Express options including DHL, Fedex, EMS, UPS, air shipping, and sea shipping. Any shipping method available based on customer preference.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
2. This LCD is what we want, but it's too big. Do you have smaller sizes? The display content needs minor changes.
Answer: For segment type LCD modules, modifying outline size or display content requires new LCD glass modules. We can create new tooling for your requirements.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Answer: Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do this?
Answer: Yes, we can customize LCD modules. Please send your drawing or provide specifications including outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive condition).
5. What is the lead time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling charge payment. We'll provide exact timelines after reviewing your specifications.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: For standard products in stock, lead time is one day after payment. For special mass production orders, lead time is typically 15-30 days. We'll inform you if we can complete earlier.
