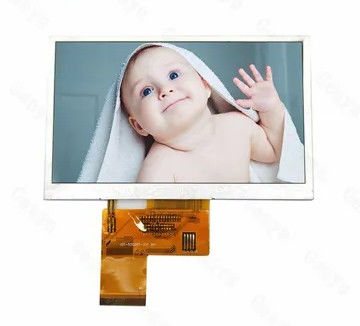

5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit

1000
MOQ
DISCUSSABLE
Price
5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
Features Gallery Product Description Chat Now
Features
Specifications
Name: 5 Inch TFT LCD Display Screen
Led Life Time: 50,000 Hr
Color Gamut: 72% NTSC
Display Area: 55.44(H)x98.64(V)mm
Backlight: 56LEDs, 160mA, 21.5V
Contrast: 300
Brightness: 250cd/m²
Highlight:

5 Inch TFT LCD Display Screen

,

5 Inch TFT Display Screen

,

40 Pin TFT Display 5 Inch
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
Key Features:
  • Screen Type: TFT is a variant of LCD with active-matrix technology, offering faster refresh rates and better image quality than traditional LCDs.
  • Resolution: 800x480 (WVGA) resolution for clear image display.
  • Aspect Ratio: 16:9 widescreen format.
  • Brightness: 500 cd/m² for excellent indoor visibility.
  • Interface: 40PIN Parallel RGB 24-Bit interface for reliable connectivity.
  • Viewing Angles: 6 O'clock viewing direction.
  • Backlighting: LED backlit for energy efficiency with 3chips serial *6 configuration.
Technical Specifications:
No. Item Specifications
1 Product Name 5.0 Inch TFT display
2 LCD Type TN, Transmissive
3 Viewing Angle 6 O'clock
4 Driver IC OTD9960A+OTA7001A
5 Resolution 800x480 dots
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 40PIN, socket type
9 FPC PITCH 0.5mm
10 Interface Parallel RGB 24-Bit
11 Backlight Type 3chips serial *6
12 Backlight Consumption 19.8V, 60mA
13 Luminance 500 cd/m²
14 Outline Dimension 120.80(W)* 75.85(H)* 3.00(D) mm
15 Active Area 108.0(W)* 64.8(H) mm
5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 0 5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 1
Packaging & Shipping:

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements.

5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 2

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping according to customer preference.

5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 3

Payment Method: Various payment options available.

5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 4
Frequently Asked Questions:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: Please send us your specification or drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.

2. This LCD is just what we want, but it is big size, do you have any smaller size?

Answer: For segment type LCD modules, modifying outline size or display content requires new LCD glass module and tooling.

3. This LCD display is HTN type, but I want STN type, can you make?

Answer: Yes, we can modify the display type according to your request.

4. I want to customize a new LCD module. Can you do?

Answer: Yes, please provide your drawing or specifications including outline size, display information, and technical requirements.

5. What is lead time for tooling?

Answer: Typically 15 to 25 days after drawing confirmation and tooling payment.

6. Can you send us samples for checking?

Answer: Yes, sample orders are available.

7. What is the Lead Time?

Answer: Standard products in stock ship within 1 day. Special orders require 15-30 days for production.

Our Services:
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo and model number printing
  • Competitive shipping rates through established partnerships
  • Professional technical support and after-sales service
  • Rigorous quality control and testing before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display solutions based on your specifications
Production Line:
  • Clean Room class 10k@0.8um, Pressure 0.8kgf
  • Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
  • 4 COG production lines
  • 2 Backlight production lines
  • Monthly capacity of 1 million units
5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 5 5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 6 5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 7
5 Inch TFT LCD Display Screen TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit 8
