RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC

1000
MOQ
DISCUSSABLE
Price
RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC
Features Gallery Product Description Chat Now
Features
Specifications
Transport Package: Standard Carton Package
Bonding Methord: Air Bonding, Optical Bonding
Fpc: 50pin
Outline Size: 31.28x30.3x1.45
Touch Type: With/without RTP/ With CTP
Pixel Arrangement: RGB-stripe
Name: 7inch IPS TFT LCD Display
Highlight:

7 Inch TFT LCD Touch Screen

,

7 Inch TFT Touch Screen 1024×600

,

7 Inch TFT Screen 50pin FPC
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC
Key Features:
  • Resolution: 1024x600 pixels, providing sharper images and clearer text compared to lower-resolution displays.
  • Aspect Ratio: 16:9, ideal for media applications including video playback and games.
  • Pixel Density: Approximately 170 PPI, suitable for general applications.
  • Display Type: TFT (Thin-Film Transistor) technology offering vibrant colors, good contrast, and fast refresh rates.
  • Backlight: LED backlighting for energy efficiency and adequate brightness for indoor use.
  • Viewing Angles: Decent but not as wide as IPS displays, with some color accuracy loss at extreme angles.
  • Connectivity: Supports RGB (parallel), HDMI, or SPI interfaces for microcontrollers and SBCs like Raspberry Pi or Arduino.
Basic Parameters:
No. Item Specifications
1 Product Name 7.0 Inch TFT LCD Display
2 Display Mode Normally white, TN, Transmissive
3 Viewing Angle Free
4 Pixel arrangement RGB Vertical stripe
5 Resolution 1024 RGB(H) x 600(V) Dots
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 50PIN, socket type
9 FPC PITCH 0.5 mm
10 Surface treatment Antiglare, Hard-Coating (3H)
11 Backlight LED Side-light type, 6 parallel 3 series
12 Interface RGB
13 Luminance 180 cd/m2
14 Outline Dimension 165(W) ×100(H) ×3.5(D) mm
15 Active Area 154.21(W) × 85.92(H) mm

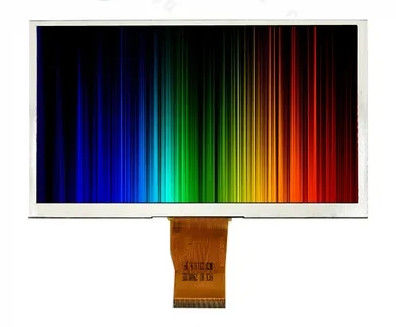

RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC 0 RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC 1
Packaging & Shipping:

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.

RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC 2

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping according to customer preference.

RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC 3

Payment Method: Various options available.

RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC 4
FAQ:
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: Please send your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.

This LCD is just what we want, but it is big size, do you have any smaller size?

Answer: For segment type LCD modules requiring size or display content modifications, new tooling would be required.

This LCD display is HTN type, but I want STN type, can you make?

Answer: Yes, we can modify the display type according to your request.

I want to customize a new LCD module. Can you do?

Answer: Yes, please provide your drawing or specifications including outline size, display information, and technical requirements.

What is leading time for tooling?

Answer: Typically 15-25 days after drawing confirmation and tooling payment.

Can you send us samples for checking?

Answer: Yes, sample orders are available.

What is the Leading Time?

Answer: 1 day for standard products in stock, 15-30 days for mass production of special orders.

Our Services:
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo and model number printing
  • Competitive shipping rates through established partnerships
  • Professional technical support and after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response time for customer inquiries
  • Customization services available based on specifications
Product Applications:
  • Household appliances: refrigerators, air conditioners, washing machines, etc.
  • Communication equipment: telephones, interphones, fax machines
  • Automotive electronics: entertainment systems, navigators, cameras
  • Instruments: water meters, electric meters, analytical instruments
  • Fitness equipment: treadmills, training devices, weighing scales
  • Financial: tax control machines, POS systems, banknote counters
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators

RGB Interface 7 Inch TFT LCD Touch Screen 1024×600 Dots Matrix 50pin FPC 5
