Home /Products/IPS TFT LCD Display/7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display

7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display

1000
MOQ
DISCUSSABLE
Price
7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
Features Gallery Product Description Chat Now
Features
Specifications
Touchscreen: No
Display Area: 68.04(H)x120.96(V)mm
Power Consumption: 30W
Input Voltage: 2.8~3.3V
Interface Type: RGB
Fpc: 26pin
Lcd Type: A-Si TFT Active Matrix
Display Colors: 16.7M
Name: IPS TFT LCD Display
Highlight:

7 Inch IPS TFT LCD Display

,

TFT LCD Display 26pin

,

IPS TFT LCD Display 480×234
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display
Key Specifications:
  • Screen Size: 7 inches (diagonal)
  • Resolution: 480 × 234 pixels, providing clear image quality for embedded applications
  • Aspect Ratio: 16:9 widescreen format
  • Technology: TFT with LED backlighting for superior color reproduction and contrast
  • Interface: RGB parallel or LVDS, compatible with embedded systems and industrial applications
Basic Parameters:
No. Item Specifications
1 Product Name 7.0 Inch TFT display
2 Display Mode Normally white
3 Viewing Angle 6 O'clock
4 Pixel arrangement RGB Vertical stripe
5 Resolution 480 RGB(H) × 234(V) pixels
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 26PIN, socket type
9 FPC PITCH 0.5 mm
10 Backlight Consumption 10.8V, 100mA
11 Luminance 200 cd/m²
12 Outline Dimension 162.6(H) × 96.6(V) mm
13 Active Area 154.08(H) × 86.58(V) mm

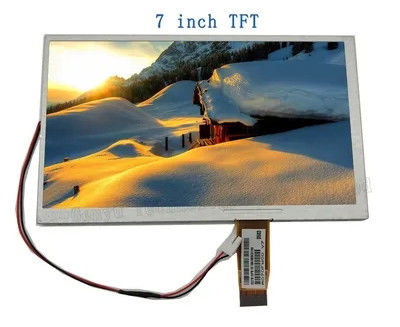

7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display 0
Our Services
1. Free repair within one year after shipment
2. Replacement within 30 days for product defects
3. Custom logo and model number printing available
4. Competitive shipping rates through established partnerships
5. Professional technical support and responsive after-sales service
6. Rigorous quality inspection before shipment
7. 24-hour response time for customer inquiries
8. Custom LCD display solutions based on your specifications
Application Fields
Audio products
Medical equipment
Industrial products
Automobiles
Sports equipment
Watches
Household appliances

7 Inch IPS TFT LCD Display 480×234 Dots 26pin FPC Liquid Crystal Display 1
