Home /Products/LCD TFT Display/SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors

SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors

1000
MOQ
DISCUSSABLE
Price
SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors
Features Gallery Product Description Chat Now
Features
Specifications
Colors: 262K
Outline Size: 19.65(H)*36.76(V)*1.6(D)mm
Backlight Type: LED
Lcd Type: IPS
Screen Size: 1.47inches
Touchscreen: Customized
Brightness: 200 Cd/m²
Display Mode: Normally White,Transmissive
Highlight:

200 cd/m2 TFT LCD Display

,

262K SPI Interface LCD Display

,

SPI interface LCD TFT Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

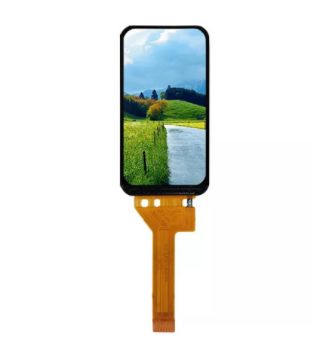

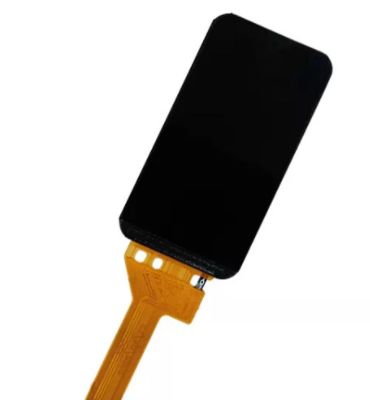

1.47" SPI TFT LCD Display Module - Small Size 172x320 TFT LCD
SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors 0 SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors 1
Technical Specifications
Resolution 172 × 320 pixels
Size 1.47 Inch
Viewing Direction RGB
TFT Mode TFT, Transmissive
Outline Size 19.65(H) × 36.76(V) × 1.6(D) mm
Brightness 200 Nits
Display Mode Normally White, Transmissive
Interface Type SPI/MCU / 80-System 8 Bits Parallel Bus
Controller/Driver ST7789V3
Key Features
  • High-quality TFT display with 262K colors for vivid image reproduction
  • Fast response time (20-30ms) for smooth dynamic scenes
  • Low power consumption ideal for portable devices
  • Wide operating temperature range (-20℃ to 70℃)
  • IPS viewing angle for minimal distortion
  • Compact size (1.47") perfect for space-constrained applications
Performance Parameters
Screen size: 1.47 inches diagonal, ideal for compact devices.
Resolution: 172×320 pixels provides sharp image and text display.
SPI interface enables high-speed data transmission with simple integration.
ST7789V3 driver chip ensures stable operation with multiple display modes.
Brightness: 300-500 CD/M² with 1000:1 contrast ratio for excellent visibility.
Wide viewing angle maintains image quality from different perspectives.
Applications
  • Smartwatches for time and fitness data display
  • Handheld game consoles with smooth graphics
  • Industrial control systems for equipment monitoring
  • Smart home devices like locks and cameras
  • Medical equipment including portable monitors


SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors 2
