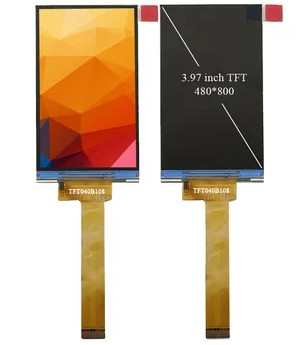

3.97Inch TFT LCD Panel IPS 480x800 Resolution WVGA MIPI 24Pin
Product Description
High-performance 3.97-inch IPS TFT LCD panel with 480x800 WVGA resolution and MIPI 24pin interface, offering superior display quality for various applications.
Advantages of IPS Panel
- Wide viewing angles up to 178°
- Enhanced color accuracy and consistency
- Improved brightness and contrast ratios
- Uniform backlight distribution
- Fast response time for smooth motion
- Excellent visual experience for multimedia
- Minimal color shifting
- Optimized for touch devices
Technical Specifications
| No. |
Item |
Specifications |
| 1 |
Product Name |
3.97 Inch TFT LCD |
| 2 |
LCD Type |
IPS |
| 3 |
Viewing Angle |
Free |
| 4 |
Resolution |
480x800 dots |
| 5 |
Operating Temperature |
-20~+70℃ |
| 6 |
FPC Connector |
24PIN, ZIF type |
| 7 |
Driver IC(COG) |
GC9503CV |
| 8 |
Interface |
MIPI |
| 9 |
Backlight Type |
8-LED, White, Parallel |
| 10 |
Backlight Power |
Vf=24±2.4V, If=20mA |
| 11 |
Outline Dimension |
55.44(H)* 96.17(V)* 2.30(D) mm |
| 12 |
Active Area |
51.84(H)* 86.40(V) mm |
Our Services
- 1-year free repair service
- 30-day replacement policy for defective products
- Custom logo and model number printing available
- Competitive shipping rates through established partnerships
- Professional technical support team
- Rigorous quality inspection before shipment
- 24-hour customer service response
- Custom LCD display solutions based on your specifications
Frequently Asked Questions
Q: I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
A: Please send your specifications or samples. We can recommend standard products or customize based on your requirements.
Q: This LCD is what we want but too large. Do you have smaller sizes?
A: For segment type LCD modules, we can create new tooling to modify size and display content.
Q: Can you change HTN type to STN type?
A: Yes, we can modify the display type per your request.
Q: Can you customize a new LCD module?
A: Absolutely. Please provide your drawings or specifications including outline size, display information, and technical requirements.
Q: What is the lead time for tooling?
A: Typically 15-25 days after drawing confirmation and tooling payment.
Q: Can you send samples?
A: Yes, sample orders are available.
Q: What is the production lead time?
A: 1 day for in-stock items, 15-30 days for custom production.
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray - customized based on product size and customer requirements.
Shipping: DHL, FedEx, EMS, UPS, air or sea shipping available per customer preference.
Product Applications
- Household appliances: refrigerators, air conditioners, washing machines, etc.
- Communication equipment: phones, intercoms, fax machines
- Automotive electronics: navigation systems, dash cams, audio systems
- Instruments: meters, gauges, analytical equipment
- Fitness equipment: treadmills, exercise bikes, health monitors
- Financial devices: POS systems, invoice machines
- Consumer electronics: MP3 players, electronic dictionaries, calculators
Features: High resolution, high definition, wide temperature range, energy efficient, available in positive or negative display options.
