Small LCD TFT Display Colors 262K 960x240 Pixels 2.7 Inch

1000
MOQ
DISCUSSABLE
Price
Small LCD TFT Display Colors 262K 960x240 Pixels 2.7 Inch
Features Gallery Product Description Chat Now
Features
Specifications
Luminance: 230 Cd/m2
Backlight Technology: LED
Operating Temperature: -20~+70℃
Backlight: White LED
Resolution: 960*240
Connectivity: RGB
Display Type: TFT
Pins Number: 40PINS
Highlight:

2.7 Inch LCD TFT Display

,

960x240 Pixels Small TFT screen

,

262K Colors LCD TFT Module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Small LCD TFT Display Colors 262K 960x240 Pixels 2.7 Inch
Product Overview

High-quality 2.7-inch TFT display with 960x240 resolution and 262K colors, featuring RGB 8bit interface and ILI8191 driver IC.

Key Specifications
Product Name TFT Display
Size (inch) 2.7
Resolution 960×240
Brightness 280
Interface RGB 8bit
Driver IC ILI8191
Technical Details
Screen Size 2.7 inch
Number of Pixel 960RGB(H)×240(V)
Display area 40.50(H)×54.00(V)mm
Pixel pitch 0.05625(H)×0.16875(V)mm
Pins 40 pins
Outline Dimension 46.20×63.10×2.38mm
Pixel arrangement RGB Vertical Stripe
Display mode Normally White
Viewing Direction(eye) 6 0'CLOCK
Display Color 262K
Luminance 230 nit
Contrast Ratio 600:1
Interface RGB 8bit
Back-light LED Side-light type
Drive IC ILI8961
Operation Temperature -30~80℃
Storage Temperature -30~80℃

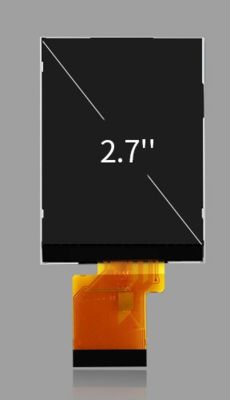

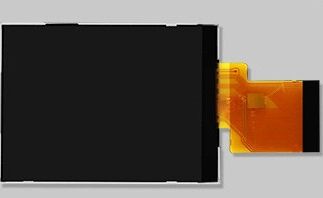

Small LCD TFT Display Colors 262K 960x240 Pixels 2.7 Inch 0 Small LCD TFT Display Colors 262K 960x240 Pixels 2.7 Inch 1
Small LCD TFT Display Colors 262K 960x240 Pixels 2.7 Inch 2 Small LCD TFT Display Colors 262K 960x240 Pixels 2.7 Inch 3
