Transmissive TFT LCD Screen 0.96 Inch 80 RGB * 160 Resolution

1000
MOQ
DISCUSSABLE
Price
Transmissive TFT LCD Screen 0.96 Inch 80 RGB * 160 Resolution
Features Gallery Product Description Request A Quote
Features
Specifications
Touchscreen: No
Screen Size: 0.96inches
Pins Number: 24 Pins
Operating Temperature: -20~+70℃
Resolution: 80*160 Pixels
Backlight Technology: LED
Backlight Type: LED
Colors: 262K
Highlight:

0.96 inch TFT LCD screen

,

80 RGB 160 resolution TFT Screen

,

transmissive TFT LCD display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Transmissive TFT LCD Screen 0.96 Inch 80 RGB * 160 Resolution
Product Overview

High-quality 0.96-inch TFT LCD display with 80 RGB × 160 resolution and transmissive technology, offering excellent visibility from all viewing angles.

Key Specifications
Resolution 80 × 160
Size 0.96 Inch
Viewing Direction All
TFT Mode TFT, Transmissive
Outline Size 14.04 × 27.948 mm × 1.45 T
Brightness 200 Nits
Technical Details
Product Name 80 RGB × 160 Resolution TFT LCD Display 0.96 Inch TFT, Transmissive
Display Outline Size 14.04 × 27.948 mm × 1.45 T
Active Area (W×H) 10.08 × 21.696 mm
Resolution 80 RGB × 160
Viewing Angle IPS
Colors 262K
Display Mode Normally White, Transmissive
Interface Type 4 - SPI
Controller / Driver ST7735S
Structure Diagram
TFT LCD display structure diagram

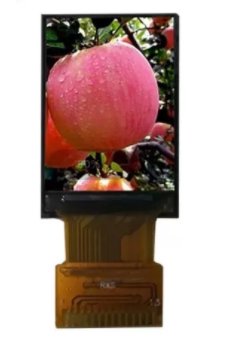

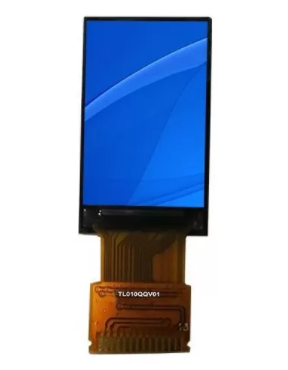

TFT LCD display product image TFT LCD display product image
TFT LCD display technical diagram TFT LCD display technical diagram
Product Demonstration

Transmissive TFT LCD Screen 0.96 Inch 80 RGB * 160 Resolution
