Features

Specifications

Touchscreen: No

Contrast Ratio: 800:1

Backlight Type: LED

Luminance: 350 Cd/m2

Screen Size: 10.1inches

Panel Type: LCD

Connectivity: LVDS

Viewing Angle: All

Highlight:

10.1 inch TFT LCD screen

LVDS Interface LCD TFT Display

40 pins LCD TFT screen

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

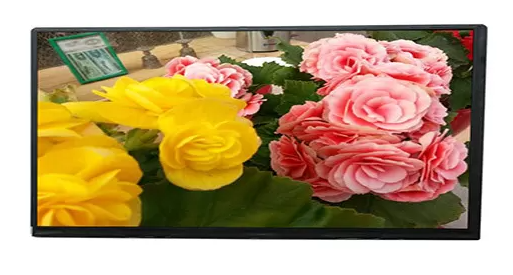

10.1" Transmissive LCD TFT Display Full Viewing Angle LVDS Interface 40 Pins

Product Description

10.1" Transmissive LCD TFT Display Full Viewing Angle LVDS Interface 40 Pins

Key Specifications

Resolution	1280 × 800
Display Mode	Transmissive
Display Type	TFT
Interface	LVDS
Touch Panel	Without
Contrast Ratio	800:1

Detailed Specifications

Item	Contents	Unit
LCD Type	TFT/Transmissive
Module Size (W×H×T)	229.46 × 149.1 × 2.45	mm
Active Size (W×H)	216.96 × 135.6	mm
Number of Dots	1280 × 800
Interface Type	LVDS
Top Polarizer Type	Anti-Glare
Recommend Viewing Direction	All	o'Clock
Brightness	350	cd/m²
Touch Panel Type	Without

Product Video

10.1" Transmissive LCD TFT Display Full Viewing Angle LVDS Interface 40 Pins 4

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65×30×2.8mm?

Answer: No problem. Firstly, please kindly send us your specification/drawing paper. If you don't have the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.

This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

Answer: For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is needed. We have to open new tooling for you.

This LCD display is HTN type, but I want STN type, can you make?

Answer: That's all right. We can change for you as per your request.

I want to customize a new LCD module. Can you do?

Answer: Yes, we can. Please send your drawing paper. If you don't have one, please advise the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp, Operating Temp, Supply Voltage, Viewing direction, drive condition), we can customize for you.

What is lead time for tooling?

Answer: Generally speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment. We can report you the exact time when you confirm the drawing paper.

Can you send us samples for checking?

Answer: Yes. Samples order is available.

What is the Lead Time?

Answer: If we have stock for the standard ones, the lead time is one day after payment. If it is the mass production for special ones, the lead time is about 15-30 days. If we can finish earlier, we will report the information in advance.
