Features

Specifications

Screen Size: 1.44 Inches

Viewing Angle: 12 O ’ Clock

Display Type: TFT LCD

Touch Screen: No

Luminance: 250 Cd/m2

Backlight: White LED

Outline Size: 30.05 * 33.82 Mm * 2.3 T

Screen Type: TFT

Highlight:

1.44 Inch TFT LCD Screen

30.05 x 33.82 mm LCD Module

262K Colors TFT Screen Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

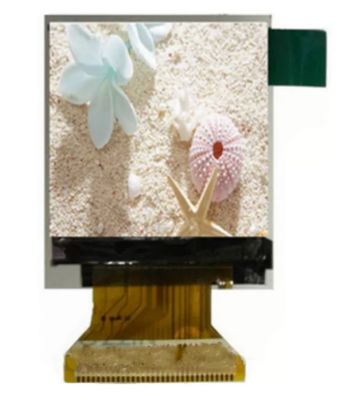

1.44 Inch TFT LCD Screen 30.05 x 33.82 mm Outline Size 262K Colors for Smart Home

Product Description

1.44 Inch TFT LCD Screen 30.05 x 33.82 mm Outline Size 262K Colors for Smart Home

Small TFT LCD Screen 1.44 Inch With MCU Interface LCD Module For Smart Home

Product Details

Resolution	128 * 128
Size	1.22 Inch
Viewing Direction	SPI
TFT Mode	TFT, Transmissive
Outline Size	33.84 * 45.12 Mm * 1.65 T
Brightness	250 Nits

Technical Specifications

Product Name	Small TFT LCD Display 1.44 inch With MCU Interface LCD Module
Display Outline Size	30.05 * 33.82 mm * 2.3 T
Surface Treatment	Glare
Number of color	262K
Viewing Angle	12 O ' Clock
Technology Type	a-Si TFT
Pixel Configuration	R.G.B. Vertical Stripe
Interface Type	MCU 8 Bits
Controller / Driver	ST7735S

Product Images

Product Demonstration

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

No problem. Firstly, please kindly send us your specification/drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.

This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.

This LCD display is HTN type, but I want STN type, can you make?

That's all right. We can change for you as per you request.

I want customize a new LCD module. Can you do?

Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.

What is leading time for tooling?

General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.

Can you send us samples for checking?

Yes. Samples order is available.

What is the Leading Time?

If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.
