Features

Specifications

Module Size: 34.0 * 42.9 Mm * 2.2 T

Lcd Type: IPS

Touchscreen: Customized

Screen Type: TFT

Interface: MCU 8080-8BIT

Luminance: 160cd/m2

Size: 1.77 Inches

Backlight Technology: LED

Highlight:

1.77 Inch LCD TFT Display

128x126 Dots LCD TFT Display

160 Nits TFT LCD Module

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

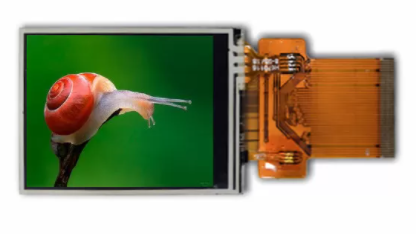

1.77 Inch LCD TFT Display 160 Nits Brightness with 128x126 Dots Resolution

Product Description

1.77 Inch LCD TFT Display 160 Nits Brightness with 128x126 Dots Resolution

This compact 1.77-inch TFT LCD module features a resolution of 128×160 dots and 160 nits brightness, designed for small-space information display applications.

Key Specifications

Resolution	128 × 160
Size	1.77 Inch
Viewing Direction	RGB
TFT Mode	TFT, Transmissive
Outline Size	34.0 × 42.9 mm × 2.2 T
Brightness	160 Nits
Pixel Pitch (W × H)	0.218 (H) × 0.218 (V)
Number of Colors	262K
Viewing Angle	6 O'Clock
Technology Type	a-Si TFT
Backlight Type	2 LEDs White LED
Interface Type	MCU 8080-8BIT
Controller/Driver	ST7735S

Structure Diagram

Product Overview

This compact 1.77-inch TFT LCD module (128×160 resolution, 160 nits brightness) is designed for small-sized, entry-level display applications requiring basic information visualization in space-constrained environments.

Key Features

Compact size ideal for small devices
Cost-effective solution compared to traditional displays
Superior display quality for basic information
Low power consumption design
Reliable performance in indoor/weak light conditions

Application Scenarios

Consumer Electronics

Ideal for portable devices requiring small displays with basic information visualization:

Mini MP3/MP4 players (displaying song names, playback progress)
Portable voice recorders (recording duration, file format)
Smart home control panels (power status, WiFi connection)
Vehicle auxiliary equipment (tire pressure data, Bluetooth player info)

Smart Wearables

Perfect for lightweight wearable devices with basic data display needs:

Entry-level smart bracelets/watches (time, steps, heart rate)
Bluetooth anti-loss devices (connection status, signal strength)
Mini exercise counters (exercise count, calorie estimation)

Industrial & IoT

Suitable for small industrial devices requiring status monitoring:

Industrial sensor terminals (temperature, pressure values)
IoT node devices (connected devices count, network signal)
Device control panels (speed, operating mode, printing progress)

Medical Health

Ideal for portable medical monitoring devices:

Electronic thermometers (temperature values)
Oximeters (oxygen saturation, heart rate)
Blood glucose analyzers (glucose levels, measurement time)

Other Applications

Toys and models (status screens, interaction displays)
Instrumentation (measurement values, units)
Smart card devices (student information, access permissions)

Available COB LCD Modules

Model	Content	Module Size (W×H mm)	View Area (W×H mm)	Dot Size (W×H mm)	Character Size (W×H mm)	Driving Method	Controller LSI	IC Package	STN-TYPE	FSTN-TYPE
8D-C0802A	8×2	84.0×44.0	63.0×25.0	1.15×1.36	6.07×11.56	1/16	S6A0069	COB	Y	Y

Product Demonstration

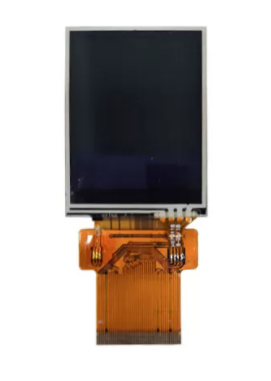

1.77 Inch LCD TFT Display 160 Nits Brightness with 128x126 Dots Resolution 3
