Home /Products/LCD TFT Display/4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View

4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View

1000
MOQ
DISCUSSABLE
Price
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View
Features Gallery Product Description Chat Now
Features
Specifications
Viewing Angle: 6 O'clock
Size: 4.3 Inches
Resolution: 480*272 Pixels
Backlight: 10 White LED
Lcd Type: TFT
Backlight Type: LED
Highlight:

4.3 inch TFT LCD display module

,

480x272 RGB LCD screen

,

6 o'clock view TFT module
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View
The 4.3-inch TFT LCD display module with 480x272 resolution and RGB interface is a versatile display solution offering excellent performance for various applications.
Display Size: 4.3 Inch
Resolution: 480×272
Display Mode: TN / Transmission / Normally White
Viewing Direction: 6 O'clock

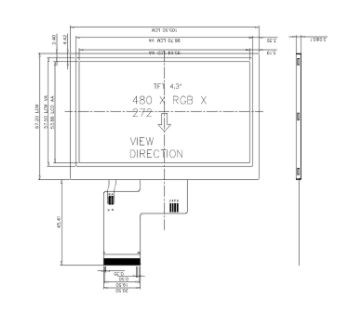

Module Size: 105.5(W)×67.2(H)×3.0(T) mm
Panel Active Area: 95.04(W)×53.856(H) mm
Driver IC: OTA5180A
Backlight Type: LED
Back Light: 10 White LED
Interface: 24-Bit Parallel RGB Interface
Operating Temperature: -20~+70℃
Storage Temperature: -30~+80℃
Number Of Pixels: 480×272 Dots
Display Type: TFT
Panel Type: TN

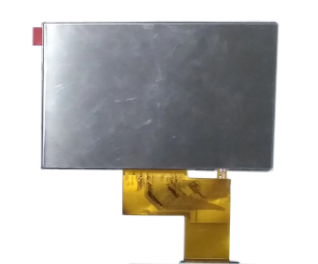

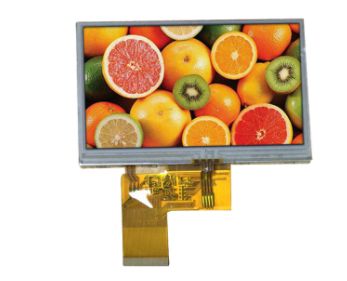

4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 0
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 1
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 2
Key Specifications
  • Diagonal size: 4.3 inches with visible area of approximately 95.04mm × 53.86mm
  • Resolution: 480×272 pixels (130,560 total pixels)
  • 24-bit RGB interface for high-quality color reproduction
  • TFT transmissive type with normally white mode
  • Brightness typically ranging from 280cd/m² to 800cd/m²
  • Wide operating temperature range: -20℃ to 70℃
Product Features
  • Capable of displaying 16.7 million colors for rich, realistic images
  • Optional touch functionality (resistive or capacitive)
  • Low power consumption design with 3.3V operating voltage
  • LED backlight with 10 white LEDs for uniform illumination
  • 6 o'clock viewing direction for optimal display orientation
Application Fields
  • Medical equipment: Blood glucose meters, blood pressure monitors
  • Industrial control: Control panels, human-machine interfaces
  • Smart home: Thermostats, appliances, control systems
  • Handheld devices: PDAs, portable navigation systems
  • Automotive and transportation displays
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 3
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 4
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 5
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 6
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 7
4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 8

4.3 Inch TFT LCD Display Module 480x272 RGB 6 O'clock View 9
