3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment

1000
MOQ
DISCUSSABLE
Price
3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Colors: 262K
Screen Size: 3.5inches
Touchscreen: No
Lcd Type: IPS
Module Size: 54.48(H)×84.71(W)×2.10(T)mm
Backlight Technology: LED
Dimensions: 14.8 X 9.3 X 0.9 Inches
Display Mode: TFT/Transmissive
Highlight:

3.5 inch TFT LCD medical screen

,

320x480 IPS LCD display

,

medical equipment TFT screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment
High-quality 3.5-inch TFT LCD screen designed specifically for medical equipment applications, featuring 320×480 resolution and reliable performance in clinical environments.
Key Specifications
Type TFT
Display Size 3.5 inch
Supplier Type OEM/ODM
Backlight Type LED
Resolution 320×480
Operating Temperature -10℃~60℃
Driver IC ILI9488
Detailed Technical Parameters
LCD Size 3.5 inch
Display Mode TFT/Transmissive
Module Size 54.48(H)×84.71(W)×2.10(T)mm
Panel Active Area 48.96(H)×73.44(W) mm
Light Source 6CHIP-WHITE LED
General Tolerance ±2.0
Storage Temperature -20~+70℃

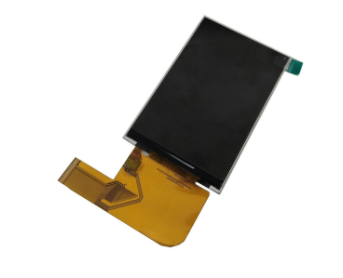

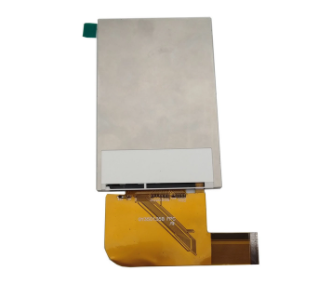

Product Images
3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment 0 3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment 1 3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment 2
Medical Equipment Applications
Portable Ultrasound Equipment
Supports dynamic grayscale imaging and M-mode echocardiography analysis with 0.3mm resolution for real-time vascular lesion observation, achieving 97.5% diagnostic accuracy.
Blood Glucose Monitor
Displays real-time glucose levels, historical records, and trend charts, with Bluetooth support for health app synchronization.
Electronic Sphygmomanometer
Clearly visualizes blood pressure measurement results for easy patient monitoring.
Endoscope Control Terminal
Displays high-definition images and surgical instrument angles with 0.2mm positioning accuracy, improving procedural precision.
Blood Oxygen Saturation Monitor
Provides real-time blood oxygen data monitoring for critical health assessments.
Portable Electrocardiograph
Clearly displays ECG waveforms for accurate cardiac condition analysis.
Product Demonstration

3.5 Inch TFT LCD Screen 320x480 IPS for Medical Equipment 3
