3.5 inch TFT LCD screen module

ST7796 LCD module 40pin

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

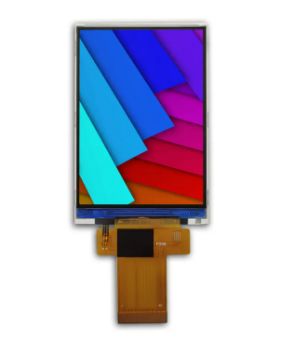

3.5 Inch TFT LCD Screen Module 320x480 Dots ST7796 40pin 12 O'clock

Product Description

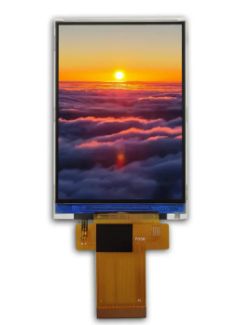

3.5 Inch TFT LCD Screen Module 320x480 Dots ST7796 40pin 12 O'clock

Product Description

3.5 Inch TFT LCD Module 320x480 Dots ST7796 40pin Serial Interface Touch Optional

Detail Information

Key Features of a 3.5-Inch TFT Display:

Color Depth: Supports 16.7 million colors (24-bit color) for vibrant and accurate images
Touchscreen (Optional): Available with resistive or capacitive touchscreen layers
- Resistive touch works with any object (finger, stylus, gloves)
- Capacitive touch supports multi-touch gestures but requires conductive input
Interface Options:
- SPI (Serial Peripheral Interface) for compact connections with Arduino/Raspberry Pi
- Parallel Interface for faster data transfer (requires more I/O pins)

Basic Parameters

NO.	ITEM	SPECIFICATIONS
1	Product Name	3.5 Inch TFT LCD
2	LCD Type	Normally White
3	Viewing Angle	12 O'clock
4	Resolution	320x480 dots
5	Operating Temperature	-20~+70℃
6	Storage Temperature	-30~+80℃
7	FPC Connector	40PIN, ZIF type
8	Driver IC(COG)	ST7796U
9	Interface	Serial Interfaces, SPI/Parallel/RGB
10	Backlight Type	6-LED, White, 120mA
11	Outline Dimension	54.66(H)82.94(V)2.25(D) mm
12	Active Area	48.96(H)*73.44(V) mm
