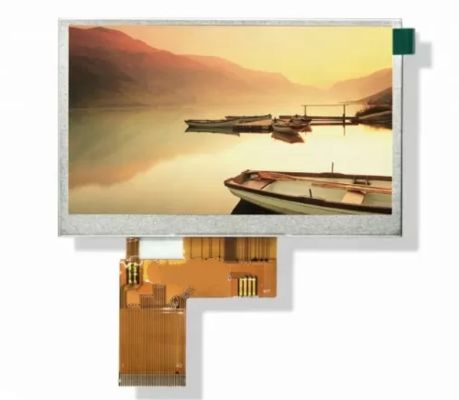

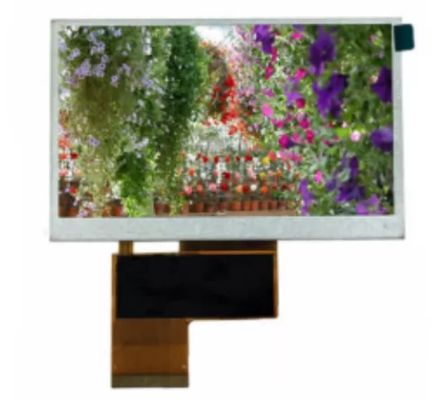

Transparent 4.3 LCD TFT Display 480x272 Dot TFT Color Screen
Custom Transparent 4.3 TFT LCD Display, 480 × 272 Dot TFT Color Screen
Product Details
| Resolution: |
480 × 272 |
| Size: |
4.3 Inch |
| Viewing Direction: |
6 O'Clock |
| TFT Mode: |
TFT, Transmissive |
| ITEM |
CONTENT |
DESCRIPTION |
| 1 |
Display outline size |
105.5 (W) mm × 67.2 (H) mm × 3.95 (D) mm |
| 2 |
VA size |
95.04 (W) × 53.86 (H) |
| 3 |
Resolution |
480 (RGB) × 272 |
| 4 |
With/Without Touch screen |
Without, RTP, CTP Option |
| 5 |
Interface |
24 bit RGB interface |
| 6 |
Brightness |
220 Cd/m² |
| 7 |
Color |
16M colors |
| 8 |
Drive IC |
OTA5180A |
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65×30×2.8mm?
Answer: No problem. Firstly, please kindly send us your specification/drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: That's all right. We can change for you as per you request.
4. I want customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is leading time for tooling?
Answer: General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes. Samples order is available.
7. What is the Leading Time?
Answer: If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.
Production Line
☆ Clean Room class 10k@0.8um, Pressure 0.8kgf
☆ Antistatic floor, resistance: 1×10 ohm to 1×10 ohm
☆ COG production lines: 4
☆ Backlight production lines: 2
☆ Existing machine capacity will be 1KK per month
In compliance with ISO9001 Quality Management
One year's guarantee for unartificial damage
- Small LCD display screen
- Reasonable price
- Large capacity
- Certificate ISO; Rohs, REACH
- Dimension as customer request
- STN blue small LCD display screen
