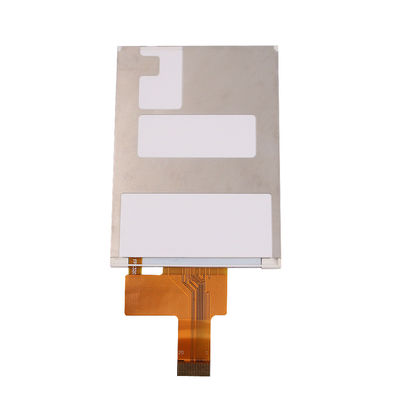

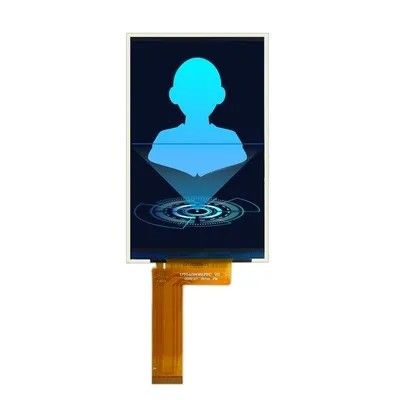

Name: MIPI Interface 3.97 Inch LCD TFT Display 480x800 24PIN For Fingerprint Lock
Brand: Dongguan Bibuke Electronic Technology Co., Ltd.
SKU: BBI-001
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Name: TFT LCD Display

Contrast Ratio: 1000:1

Display Type: TFT

Resolution: 480x800 Dots

Viewing Angle: 178 Degrees

Pixel Pitch: 0.18mm

Active Area: 51.84(H)* 86.40(V) Mm

Highlight:

3.97 Inch LCD TFT Display

TFT LCD Display 480x800

TFT MIPI Interface Display

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Model Number: BBI-001

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

MIPI Interface 3.97 Inch LCD TFT Display 480x800 24PIN For Fingerprint Lock

Product Description

MIPI Interface 3.97 Inch LCD TFT Display 480x800 24PIN For Fingerprint Lock

Product Overview

A 3.97-inch TFT screen offers more display area than standard 3.5-inch displays while maintaining the benefits of TFT technology including vibrant colors, sharp resolution, and fast refresh rates. Ideal for applications requiring compact yet slightly larger displays.

Technical Specifications

Item	Specification
Product Name	3.97 Inch TFT LCD
LCD Type	IPS
Viewing Angle	All
Resolution	480x800 dots
Operating Temperature	-20~+70℃
Storage Temperature	-30~+80℃
FPC Connector	24PIN, ZIF type
Driver IC(COG)	GC9503CV
Interface	MIPI
Backlight Type	8-LED, White, Parallel
Backlight Power	Vf=24±1.6V, If=20mA
Outline Dimension	57.14(H)* 96.85(V)* 2.20(D) mm
Active Area	51.84(H)* 86.40(V) mm

Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements.

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping based on customer preference.

Frequently Asked Questions

Can you customize LCD displays?

Yes, we can customize LCD modules based on your specifications or samples. Please provide your drawing or detailed requirements including outline size, display content, and technical parameters.

What is the lead time for tooling?

Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon order.

Do you provide samples?

Yes, sample orders are available for standard products.

Our Services

1-year free repair service
30-day replacement for defective products
Custom logo and model number printing
Professional technical support and after-sales service
Rigorous quality control before shipment
Custom LCD display solutions available

Product Applications

Household appliances: Refrigerators, air conditioners, washing machines, microwave ovens
Communication equipment: Telephones, interphones, wireless devices
Automotive electronics: Navigation systems, entertainment systems, cameras
Instruments: Water meters, electric meters, measuring devices
Fitness equipment: Treadmills, fitness bikes, weighing scales
Financial devices: POS machines, tax control equipment
Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators
