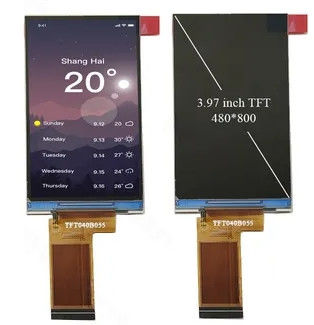

3.97 Inch LCD TFT Display Free Angle 480x800 Pixels GC9503 Custom TFT Display
Product Overview
- Screen Size: 3.97 inch diagonal measurement, offering an optimal balance between compact size and display area for complex interfaces.
- Resolution: 480×800 pixel resolution delivers sharp, clear images suitable for text, graphics, and real-time data display.
Technical Specifications
| No. |
Item |
Specifications |
| 1 |
Product Name |
3.97 Inch TFT LCD |
| 2 |
LCD Type |
IPS |
| 3 |
Viewing Angle |
All |
| 4 |
Resolution |
480×800 dots |
| 5 |
Operating Temperature |
-20~+70℃ |
| 6 |
Storage Temperature |
-30~+80℃ |
| 7 |
FPC Connector |
24PIN, ZIF type |
| 8 |
FPC PITCH |
0.5 mm |
| 9 |
Driver IC(COG) |
GC9503CV |
| 10 |
Interface |
RGB |
| 11 |
Backlight Type |
8-LED, White, Parallel |
| 12 |
Backlight Power |
Vf=12.8V, If=40mA |
| 13 |
Outline Dimension |
55.44(H)×96.17(V)×2.30(D) mm |
| 14 |
Active Area |
51.84(H)×86.40(V) mm |
Customer Support & Services
1. Free repair within one year after shipment
2. Replacement within 30 days for defective products
3. Custom logo and model number printing available
4. Competitive shipping rates through established partnerships
5. Professional technical support and responsive after-sales service
6. Rigorous quality control with pre-shipment inspection
7. 24-hour response time for customer inquiries
8. Custom LCD display solutions based on your specifications
Packaging & Shipping Options
Packaging: Carton boxes, cupboard, EPE, blister tray - customized to product size and customer requirements.
Shipping: DHL, FedEx, EMS, UPS, air or sea freight - select your preferred method.
Payment Methods: Various options available for customer convenience.
Frequently Asked Questions
Q: Can you customize display size and content?
A: Yes, we can create custom LCD modules based on your specifications or samples.
Q: What about display type modifications (HTN to STN)?
A: We can modify display types according to your requirements.
Q: What is the tooling lead time?
A: Typically 15-25 days after drawing confirmation and payment.
Q: Can you provide samples?
A: Yes, sample orders are available.
Q: What is the production lead time?
A: 1 day for stocked items, 15-30 days for custom production.
Product Applications
Household Appliances: Refrigerators, air conditioners, washing machines, microwave ovens, and other home electronics.
Communication Equipment: Telephones, intercoms, fax machines, and wireless devices.
Automotive Electronics: Navigation systems, car audio, reverse cameras, and vehicle diagnostics.
Instruments: Meters, scales, pressure gauges, and analytical equipment.
Fitness Equipment: Treadmills, exercise bikes, and health monitoring devices.
Financial Devices: POS systems, tax control machines, and banking equipment.
Consumer Electronics: MP3 players, DVDs, electronic dictionaries, and calculators.
