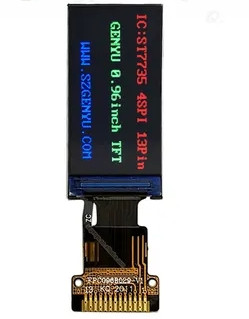

0.96 Inch RGB TFT Display SPI Interface 80x160 Resolution 13PIN FPC
A 0.96-inch TFT LCD (Thin Film Transistor Liquid Crystal Display) is a small, compact display typically used in various electronic projects, especially in hobbyist and DIY applications. It offers a good balance of size, resolution, and color depth for small devices.
Key Features:
- Resolution: 160x80 or 128x64 pixels
- Color Depth: Supports 65K or 262K colors
- Interface: SPI (Serial Peripheral Interface) or I2C, compatible with Arduino or Raspberry Pi
- Applications: Handheld devices, wearables, IoT projects, and small screens for data readouts
Basic Parameters:
| NO. |
ITEM |
SPECIFICATIONS |
| 1 |
Product Name |
0.96 Inch TFT LCD |
| 2 |
LCD Type |
IPS |
| 3 |
Viewing Angle |
Free |
| 4 |
Resolution |
80x160 dots |
| 5 |
Working Voltage |
2.8V |
| 6 |
Operating Temperature |
-20~+70℃ |
| 7 |
Storage Temperature |
-30~+80℃ |
| 8 |
FPC Connector |
13pin, soldering type |
| 9 |
Pitch |
0.5 mm |
| 10 |
Driver IC(COG) |
ST7735S |
| 11 |
Interface |
4 SPI |
| 12 |
Backlight Type |
1-LED, White |
| 13 |
Power Consumption |
VF=3.2V, IF=15mA |
| 14 |
Brightness |
350 cd/m2 |
| 15 |
Outline Dimension |
13.5(W)* 27.95(H)* 1.46(T) mm |
| 16 |
Active Area |
10.8(W)* 21.7(H) mm |
Packaging & Shipping:
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements.
Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any shipping method available.
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples and we'll recommend suitable products or customize based on your requirements.
2. This LCD is what we want, but it's too big. Do you have smaller sizes?
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Answer: Yes, we can change the type according to your request.
4. I want to customize a new LCD module. Can you do it?
Answer: Yes, we can. Please send your drawing paper or provide outline size, display information (glass thickness, polarizer, display type, connector mode, temperature ranges, supply voltage, viewing direction, drive condition).
5. What is the lead time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling payment. Exact time will be confirmed after drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: For standard products in stock: 1 day after payment. For mass production of special orders: 15-30 days. We'll inform you if we can finish earlier.
Our Services:
- Free repair within one year after shipment
- Replacement within 30 days for defective products
- Custom logo and model number printing available
- Discounted shipping rates through our partner carriers
- Professional technical support and after-sales service
- All products inspected and tested before shipment
- 24-hour response time for customer inquiries
- Custom LCD displays available based on your specifications
Product Applications:
Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, dryers, vacuum cleaners, microwave ovens, cookers, rice cookers, etc.
Communication equipment: Telephones, interphones, fax machines, wireless wifi devices.
Automotive electronics: On-board entertainment systems, vehicle navigators, car audio, reverse radars, cameras, anti-theft devices.
Instruments: Water meters, electric meters, multimeters, electronic scales, pressure meters, temperature meters, analytical instruments.
Fitness equipment: Treadmills, exercise bikes, training devices, pedometers, electronic sphygmomanometers.
Financial: Tax control cash machines, POS machines, banknote counting machines.
Consumer electronics: MP3/MP4 players, DVDs, electronic dictionaries, e-readers, learning machines, electronic clocks, calculators.
