Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel

1000
MOQ
DISCUSSABLE
Price
Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel
Features Gallery Product Description Chat Now
Features
Specifications
Name: 2.4 Inch TFT LCD Screen Display
Compatibility: Windows, Mac, Linux
Color Gamut: SRGB 100%
Backlight Type: LED
Response Time: 5 Ms
Touchscreen: No
Size: 2.4 Inches
Highlight:

24pin TFT LCD Screen

,

2.4 Inch TFT LCD Display

,

16 Bit Parallel LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

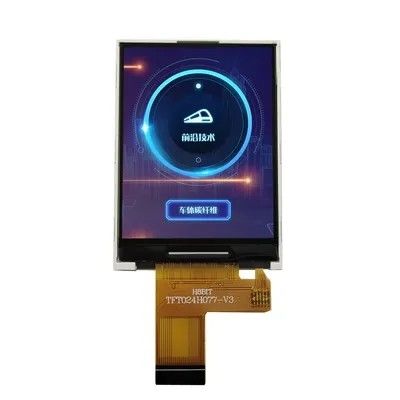

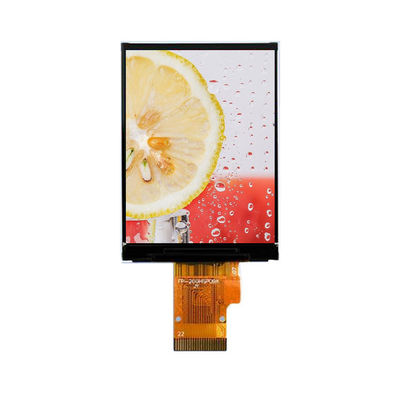

Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel
Full Color 2.4 Inch TFT LCD Screen Display with 240x320 resolution, 24-pin ZIF connector, and 16-bit parallel interface.
Technical Specifications
NO. ITEM SPECIFICATIONS
1 Product Name 2.4-inch Full-Color TFT LCD Screen Display
2 LCD Type TN Transmissive, QVGA
3 Viewing Angle 12 O'clock
4 Resolution 240x320 dots
5 Working Voltage 2.8~3.3V
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 24 pins, ZIF type
9 Pitch 0.5 mm
10 Driver IC(COG) ILI9341
11 Interface MCU 16-bit Parallel
12 Backlight Type 4 LEDs, White
13 Power Consumption VF=3.2V, IF=20*4mA
14 Brightness 250 cd/m2
15 Outline Dimension 42.72(W)* 60.26(H)* 2.3(T) mm
16 Active Area 36.72(W)* 48.96(H) mm
17 Touch Panel Without
Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel 0 Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel 1
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country. Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel 2
Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping - customer preference. Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel 3
Payment Method: Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel 4
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom logo and model number printing available
  • Preferred shipping rates through established partnerships
  • Professional technical support and after-sales service
  • All products inspected and tested before shipment
  • 24-hour response time for customer inquiries
  • Custom LCD display solutions based on your specifications
Application Fields
Audio products, Medical Equipment, Industrial products (water meters, electronic meters, equipment), Automobiles, Sports Equipment, Watches, Household appliances (air conditioners, washing machines, refrigerators, disinfection cabinets, electronic scales, etc.)

Full Color 2.4 Inch TFT LCD Display 240x320 Dots 24pin 16 Bit Parallel 5
