Home /Products/LCD TFT Display/BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin

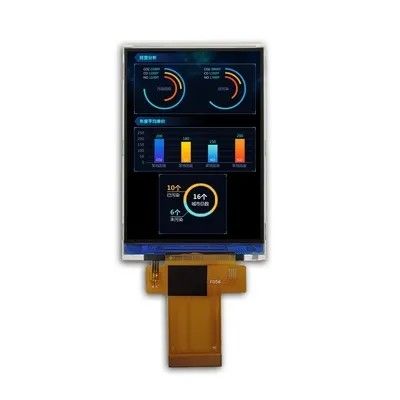

BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin

1000
MOQ
DISCUSSABLE
Price
BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin
Features Gallery Product Description Chat Now
Features
Specifications
Name: BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin
Display Type: TFT
Operating Temperature: -20~+70℃
Viewing Angle: 12 O'clock
Color Gamut: RGB
Backlight Type: 6-LED, White, 120mA
Resolution: 320*480
LCD Type: Normally White
Highlight:

3.5 Inch TFT LCD Module

,

40pin LCD Display Module

,

LCD TFT Display 320x480
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin
Key Features
  • Color Depth: Supports 16.7 million colors (24-bit color) for vibrant and accurate images
  • Touchscreen (Optional): Available with resistive or capacitive touchscreen layer
  • Interface: Supports SPI, Parallel, and RGB interfaces for flexible connectivity
Technical Specifications
Item Specification
Product Name 3.5 Inch TFT LCD
LCD Type Normally White
Viewing Angle 12 O'clock
Resolution 320x480 dots
Operating Temperature -20°C to +70°C
Storage Temperature -30°C to +80°C
FPC Connector 40PIN, ZIF type
Driver IC ST7796U
Backlight Type 6-LED, White, 120mA
Outline Dimension 54.66(H) × 82.94(V) × 2.25(D) mm
Active Area 48.96(H) × 73.44(V) mm
BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin 0 BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin 1
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo and model number printing available
  • Professional technical support and after-sales service
  • Rigorous quality control and testing before shipment
  • Custom LCD display solutions based on your specifications
Packaging & Shipping

Packaging options include carton boxes, cupboard, EPE, and blister trays. We offer flexible packaging solutions based on product size and customer requirements.

BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin 2

Shipping methods available: DHL, FedEx, EMS, UPS, air shipping, and sea shipping.

BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin 3 BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin 4
Frequently Asked Questions
Can you customize LCD displays with different specifications?

Yes, we can customize LCD displays based on your specifications or drawings. Please provide your requirements or samples for us to recommend suitable solutions.

What is the lead time for custom LCD displays?

For standard products in stock, lead time is 1 day after payment. For custom products, typical lead time is 15-30 days after drawing confirmation and tooling payment.

Do you provide samples for evaluation?

Yes, sample orders are available for quality verification before bulk orders.

Product Applications

This 3.5" TFT LCD display is suitable for various applications including:

  • Household appliances (refrigerators, air conditioners, washing machines)
  • Communication equipment (telephones, interphones, fax machines)
  • Automotive electronics (navigation systems, entertainment systems)
  • Instruments (water meters, electric meters, measuring devices)
  • Fitness equipment (treadmills, exercise bikes)
  • Financial equipment (POS machines, tax control devices)
  • Consumer electronics (MP3 players, electronic dictionaries)

BBI-001 3.5 Inch LCD TFT Display 320x480 Dots ST7796 40pin 5
