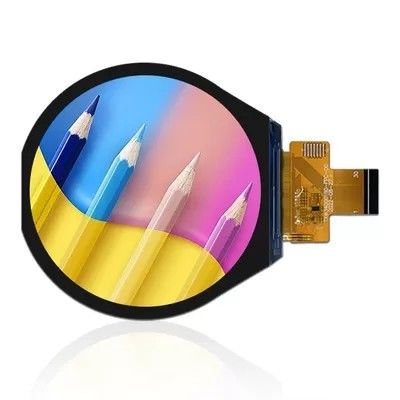

2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen

1000
MOQ
DISCUSSABLE
Price
2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen
Features Gallery Product Description Chat Now
Features
Specifications
Surface Lumiannce: 450/cd
Lcd Size: 2.1 Inch
Commodity: 1.3 Inch TFT LCD Display
Lcd Resolution: 480x480 Dots
Outline Dimension: 69.19-71.74*2.45 Mm
Storage Temp: -20℃~+ 70℃
Highlight:

2.1-inch round TFT LCD screen

,

480x480 smart appliance display

,

small home appliance LCD screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.1-Inch 480 × 480 Round TFT LCD Smart Small Home Appliance Display Screen
High-quality round TFT LCD display designed for smart home appliances with excellent visibility and performance characteristics.
Detail Information
Model Number BBI210005B0
Number Of Pixels 480×3RGB(H)×480(V)
LCD Type Normally Black
Drive Element TFT Active Matrix
Pixel Pitch (W×H) 0.111×0.111
Operating Temperature -20~70°C
Lumens Degrees 450cd/M²
Size 2.1 Inch
Key Features
  • Product Name: Round TFT LCD
  • Size: 2.1 Inch
  • LCM Interface: RGB 18 BIT Interface
  • Drive Element: TFT Active Matrix
  • LCD Type: Normally Black
Technical Parameters
ITEM Standard value Unit
Size 2.1 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 480×3RGB(H)×480(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W×H) 0.111×0.111 mm
Active area Φ53.28 mm
Mechanical Outline Size (W×H×T) 56.18×59.71×2.2 mm
Viewing direction ALL O'CLOCK -
LCM Driver IC ST7701S -
LCM interface RGB 18 BIT Interface -
LCM pin count 40
Backlight LEDs 4 pcs
Backlight current 80 ma
Backlight voltage 2.8-3.3 v
Operating temperature 50 ℃
Storage temperature 50 ℃
Lumens degrees 450 Cd/㎡

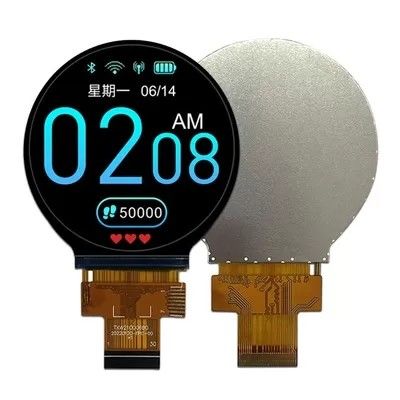

2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen 0 2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen 1
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements.

2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen 2

Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any shipping method available based on customer preference.

2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen 3

Payment Method:

2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen 4
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65×30×2.8mm?
Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
This LCD is what we want but too large. Do you have smaller sizes? Display content needs minor changes.
For segment type LCD modules requiring size or content modifications, new LCD glass modules with custom tooling are required.
This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can modify the display type according to your requirements.
I want to customize a new LCD module. Can you do it?
Yes. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, and operating conditions.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
Can you send samples for checking?
Yes, sample orders are available.
What is the lead time?
For standard products in stock: 1 day after payment. For mass production of special orders: 15-30 days. We'll update you if we can complete earlier.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo and model number printing available
  • Competitive shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response time for customer inquiries
  • Custom LCD display solutions based on your specifications
Product Applications
  • Audio products
  • Medical equipment
  • Industrial products (water meters, electronic meters, equipment)
  • Automobiles
  • Sports equipment
  • Watches
  • Household appliances (air conditioners, washing machines, refrigerators, disinfection cabinets, dishwashers, calculators, electronic scales)

2.1-Inch 480 * 480 Round TFT LCD Smart Small Home Appliance Display Screen 5
