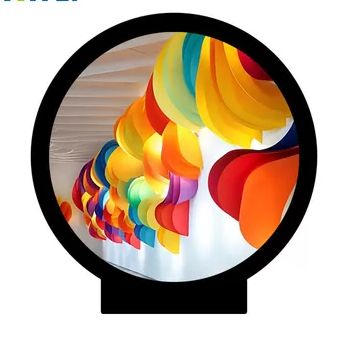

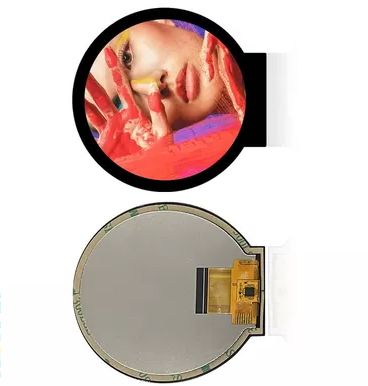

2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface

1000
MOQ
DISCUSSABLE
Price
2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface
Features Gallery Product Description Chat Now
Features
Specifications
Storage Temperature: -20~+70C
Port: Shenzhen/Hong Kong
Lcm Dimension: 73.03 (H)*76.48(V)*2.3(D)mm
Touch Panel: Support Customize CTP&RTP
Optic Angle: ALL
Screen Size: 2.76 Inches
Type: TFT LCD
Warranty: 1 Year
Highlight:

2.76 inch round TFT LCD display

,

480x480 resolution MIPI display module

,

550cd/m² brightness round LCD screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.76 Inch 480 X 480 550cd/m² Round TFT LCD Display Module MIPI Interface
Product Overview

High-performance 2.76-inch round TFT LCD display module featuring 480×480 resolution, 550cd/m² brightness, and MIPI 2 LANE interface.

Detailed Specifications
Model Number BBi276002B0-CTP
Active Area Φ70.128
Mechanical Outline Size (W×H×T) 81.23×84.4×3.68
LCM Interface MIPI 2 LANE Interface
Pixel Arrangement RGB Stripe
Number Of Pixels 480×3RGB(H)×480(V)
Operating Temperature -20~70°C
Size 2.76inch
Technical Parameters
  • Product Name: Round TFT LCD
  • Viewing direction: ALL O'CLOCK
  • IC/LCM Driver IC: ST7701S
  • Lumens degrees: 550cd/m²
  • Active area: Φ70.128
  • LCM interface: MIPI 2 LANE Interface
2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface 0 2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface 1 2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface 2
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which vary by country.

2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface 3

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping - customer's preferred method.

2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface 4
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.

2. This LCD is what we want, but it's too large. Do you have smaller sizes?

Answer: For segment type LCD modules requiring size or content modifications, we can create new LCD glass modules with custom tooling.

3. Can you make STN type instead of HTN type?

Answer: Yes, we can modify the display type per your request.

4. Can you customize a new LCD module?

Answer: Yes. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, and operating parameters.

5. What is the lead time for tooling?

Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon order.

6. Can you send samples for checking?

Answer: Yes, sample orders are available.

7. What is the lead time?

Answer: Standard products in stock ship within 1 day. Custom production takes 15-30 days, with possible earlier completion.

Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom logo and model number printing available
  • Discounted shipping rates through our partnerships
  • Professional technical support and after-sales service
  • All products inspected and tested before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display solutions available
Product Applications
  • Household appliances: Refrigerators, air conditioners, water heaters, washing machines, microwave ovens, etc.
  • Communication equipment: Telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: On-board entertainment, navigation systems, car audio, cameras
  • Instruments: Water meters, electric meters, multimeters, analytical instruments
  • Fitness equipment: Treadmills, fitness bikes, electronic scales, sphygmomanometers
  • Financial: Tax control machines, POS systems, banknote counters
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators
Key Features
  • High resolution and definition
  • High brightness (550cd/m²)
  • Cost-effective solution
  • Energy efficient
  • Wide temperature range (-20~70°C)

2.76 Inch 480 X 480 550cd/M² Round TFT LCD Display Module MIPI interface 5
