COG LCD module FSTN 12864

128x64 resolution LCD display

wide temperature COG LCD

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

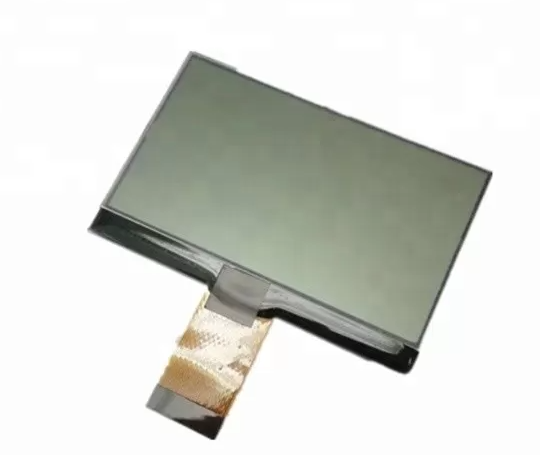

COG LCD Module FSTN 12864 Graphic Wide Temperature 128 * 64 Resolution

Product Description

COG LCD Module FSTN 12864 Graphic Wide Temperature 128 × 64 Resolution

High-performance COG LCD module featuring FSTN technology with wide temperature range and 128 × 64 resolution.

Technical Specifications

Resolution	128 × 64
Display Mode	Transflective
Display Type	STN Positive
Viewing Direction	6 O'clock
Outline Size	79.05 × 39.5 × 8.24 mm
Viewing Size	53.6 × 28.6 mm

Detailed Features

Item	Content	Description
1	Display Model	Positive
2	Display type	STN
3	Polarizer type	Transflective
4	Viewing angle	6 o'clock
5	Driving Method	1/64 duty, 1/9 bias
6	Interface	Parallel + BL
7	Backlight	LED backlight
8	Driver IC	S6B0724
9	Voltage	3.3V

What is COG LCD?

COG (Chip On Glass) LCD technology integrates the controller chip directly onto the LCD glass substrate. This innovative approach eliminates the need for a separate PCB, resulting in a more compact and cost-effective solution. The module consists of three primary components: the glass panel, controller driver chip, and connecting cable.

Compared to COB (Chip On Board) alternatives, COG displays typically offer lower production costs. Since they aren't mounted on circuit boards, COG modules utilize double-sided tape for chassis mounting rather than traditional mounting holes.
