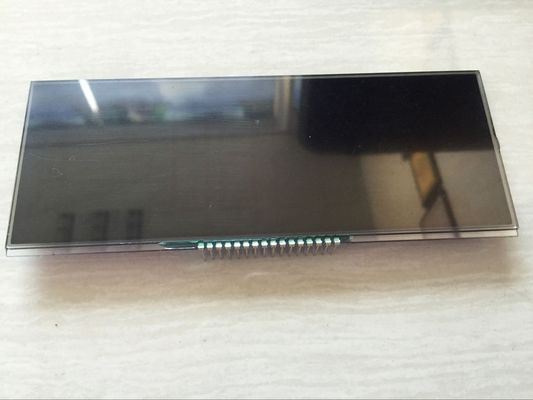

32PIN COG LCD Display 3.3V VTN NEGATIVE 1/32DUTY 1/6BIAS 9.5V ST7567
Absolute Maximum Ratings
| Item |
Symbol |
MIN |
Max |
Unit |
| Supply Voltage |
VDD |
-0.3 |
4.0 |
V |
| VLCD |
|
-0.3 |
19.8 |
V |
| Input Voltage |
Vin |
-0.4 |
VDD+0.5 |
V |
| Absolute maximum forward current (Backlight) |
Ifm |
-- |
60 |
mA |
| Reverse voltage (Backlight) |
Vr |
-- |
3.1 |
V |
| Operating temperature |
Topr |
-20 |
70 |
℃ |
| Storage temperature |
Tstr |
-30 |
80 |
℃ |
Packaging & Shipping
Packaging:
Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping:
Available shipping methods include DHL, Fedex, EMS, UPS, air shipping, and sea shipping. Customers may choose their preferred method.
Payment Method:
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want, but it's too large. Do you have smaller sizes?
For segment type LCD modules, modifying outline size or display content requires new tooling for a custom LCD glass module.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can modify the display type according to your request.
4. Can you customize a new LCD module?
Yes. Please provide your drawing or specifications including outline size, display information, glass thickness, polarizer type, connector mode, temperature requirements, and viewing direction.
5. What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
6. Can you send samples for checking?
Yes, sample orders are available.
7. What is the lead time?
Standard products in stock ship within 1 day after payment. Special mass production orders typically take 15-30 days, with earlier completion reported when possible.
