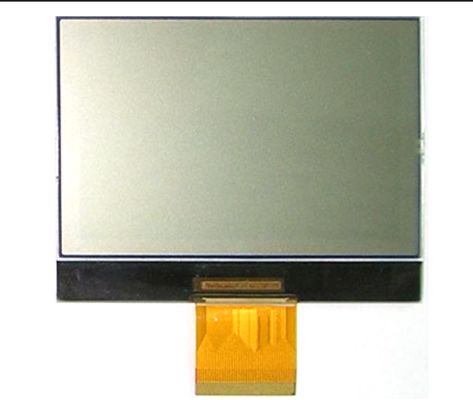

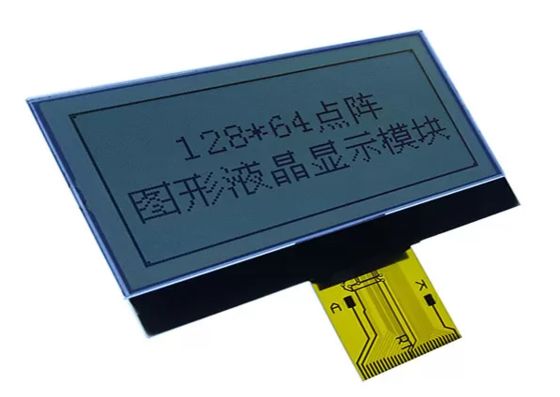

HTN/STN COG LCD Display 1/64 Duty Driving Method Positive Model Small Size
This high-quality HTN/STN COG LCD display features a 1/64 duty driving method with positive model configuration. Its compact size makes it ideal for various industrial and commercial applications.
Technical Specifications
| Resolution |
128 × 64 |
| Display Mode |
Transflective |
| Display Type |
STN Positive |
| Viewing Direction |
6 O'clock |
| Outline Size |
79.05 × 39.5 × 8.24 mm |
| Viewing Size |
53.6 × 28.6 mm |
Detailed Features
| Item |
Content |
Description |
| Display Model |
Positive |
|
| Display Type |
STN |
|
| Polarizer Type |
Transflective |
|
| Viewing Angle |
6 o'clock |
|
| Driving Method |
1/64 duty, 1/9 bias |
|
| Interface |
Parallel + BL |
|
| Backlight |
LED backlight |
|
| Driver IC |
S6B0724 |
|
| Voltage |
3.0V |
|
What is COG LCD?
COG (Chip On Glass) LCD technology integrates the controller chip directly onto the LCD glass substrate. This innovative approach eliminates the need for a separate PCB, resulting in a more compact and cost-effective display solution. The three primary components of a COG display are:
- The glass substrate
- The controller driver chip
- The connecting cable
COG displays typically offer lower production costs compared to COB (Chip On Board) alternatives. Without a circuit board, COG modules are mounted directly to the product chassis using double-sided tape rather than traditional mounting holes.
Product Images
Packaging & Shipping
Packaging: Carton boxes, cupboard, EPE, blister tray. Packaging methods are customized based on product size and customer requirements, complying with international shipping standards.
Shipping: Available via express (DHL, FedEx, EMS, UPS), air freight, or sea freight - whichever method best suits your needs.
Payment Method: Various payment options available to accommodate international transactions.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
We can accommodate custom specifications. Please provide your detailed requirements or samples, and we'll recommend suitable standard products or develop a customized solution.
2. This LCD is what we want, but it's too large. Do you have smaller sizes?
For segment-type LCD modules requiring size or content modifications, we can create new tooling to produce customized glass modules according to your specifications.
3. This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can modify the display type (HTN to STN or vice versa) to meet your specific requirements.
4. Can you customize a new LCD module?
Absolutely. Please provide your technical drawings or specifications including outline dimensions, display information, glass thickness, polarizer type, connector mode, temperature requirements, voltage, viewing direction, and drive conditions.
5. What is the lead time for tooling?
Standard tooling requires 15-25 days after drawing confirmation and payment. We'll provide exact timelines upon project confirmation.
6. Can you send samples for evaluation?
Yes, sample orders are available for quality verification before bulk production.
7. What is the production lead time?
For standard products in stock, we can ship within 1 day after payment. Custom mass production typically requires 15-30 days, with earlier completion notifications when possible.
