High Contrast VA LCD Display with 33x29 mm Display Area 22PIN Interface

1000
MOQ
DISCUSSABLE
Price
High Contrast VA LCD Display with 33x29 mm Display Area 22PIN Interface
Features Gallery Product Description Chat Now
Features
Specifications
Backlight Type: LED
Polarizer Type: Transmissive
LCD Type: Segmented Display
Technology: LCD
Drive Method: 1/4 Duty, 1/3 Bias
Working Voltage: 5.0V
VA Size: 33(W)* 29(H) Mm
Connection Way: PIN, 22 Numbers
Highlight:

33x29 mm VA LCD Display

,

22PIN Interface 7 Segment LCD Display

,

VA High Contrast LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
High Contrast VA LCD Display with 33x29 mm Display Area 22PIN Interface
Color Digits 7 Segment VA LCD Display with 22PIN White Backlight, offering superior visibility and performance for various applications.
Key Specifications
LCD Type VA, Negative
Viewing Angle 6 O'clock
Operating Temperature -20~+70℃
LCD Drive Voltage 5.0V
Connector PIN
VA LCD Technology Features
  • Liquid crystals vertically aligned to glass substrate in off state, producing deep black levels
  • When voltage applied, crystals tilt to allow light passage, creating bright and sharp visuals
  • Higher contrast ratio than TN LCD with wider viewing angles (up to 178 degrees)
  • Reduced color distortion compared to TN layouts
Detailed Parameters
Outline Dimension 40(W)*35(H)*2.8(T) mm Display mode VA, Negative
LCD viewing area 33(W)*29(H) mm Polarizer type Transmissive
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 6 O'clock Connection Way PIN, 22 numbers
Operate temperature -20℃~+70℃ LED Backlight White
VA LCD vs. FSTN LCD Comparison
Features VA LCD FSTN LCD
Contrast Ratio High Moderate to High
Viewing Angles Wide Moderate
Response Time Moderate Fast
Color Capability Monochrome (or full color in some configurations) Grayscale
Power Efficiency High Very High
Durability High High
Cost Moderate Low to Moderate
Best For High-contrast, premium applications Cost-sensitive, grayscale applications
Product Images

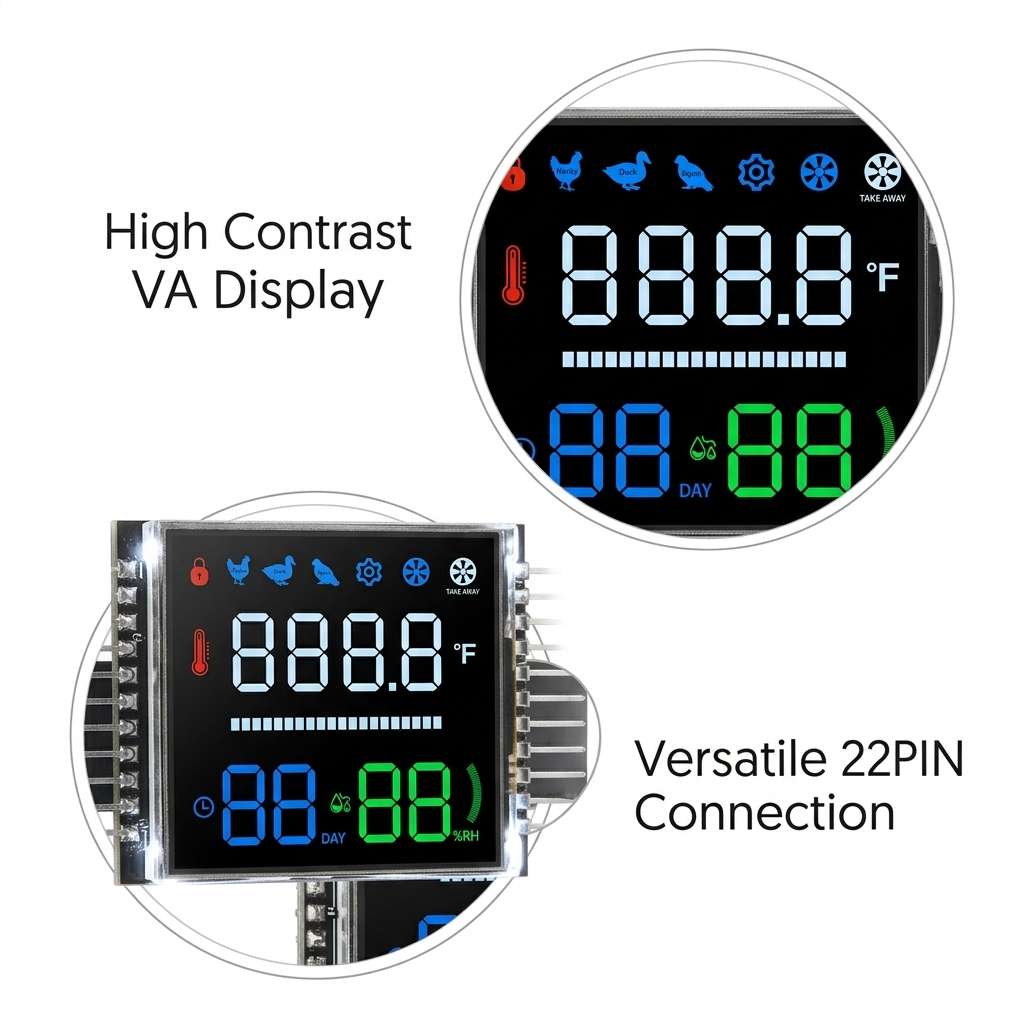

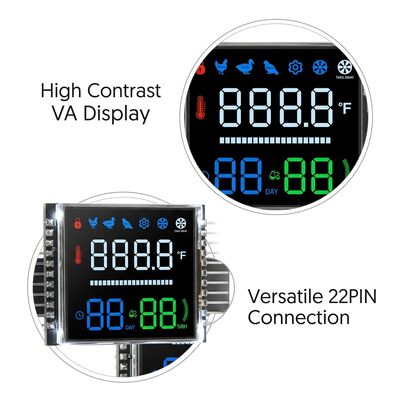

High Contrast VA LCD Display with 33x29 mm Display Area 22PIN Interface 0 High Contrast VA LCD Display with 33x29 mm Display Area 22PIN Interface 1 High Contrast VA LCD Display with 33x29 mm Display Area 22PIN Interface 2
7-Segment Display Technology
Using a 7-segment digital display structure that controls the on-off of 7 different stroke segments to display numbers 0-9 and simple characters/symbols. This clear display method is ideal for digital display scenarios like electronic clocks, counters, and thermometers.
Backlight and Interface
White Backlight: High-brightness, low-power white LEDs provide uniform illumination for clear visibility in various lighting conditions.
22PIN Interface: Robust connection channel for power, control signals, and data transmission to external circuits and microcontrollers.
Performance Parameters
  • Working Voltage: Typically 5.0V (varies by model)
  • Operating Temperature: -20℃ to +70℃ range
  • Driving Method: 1/4DUTY and 1/3BIAS for optimal display stability
Applications
  • Automotive: Dashboard panels and control displays
  • Medical Devices: Monitors and diagnostic equipment
  • Consumer Electronics: Smart home devices and appliances
  • Industrial Equipment: High-contrast displays for harsh environments
  • Instrumentation: Measurement devices and parameter displays

High Contrast VA LCD Display with 33x29 mm Display Area 22PIN Interface 3
