Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module

1000
MOQ
DISCUSSABLE
Price
Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module
Features Gallery Product Description Chat Now
Features
Specifications
Driver Ic: HT1623
Aspect Ratio: 16:9
Operating Temperature: -30~80℃
Back Polarizer: Transmissive
Power Consumption: 25 Watts
Transport Package: Carton/Pallet
Contrast Ratio: 3000:1
Voltage: 5.0V
Name: VA LCD Display
Highlight:

Segmented VA LCD Display

,

VA LCD Display Black Panel

,

VA LCD Panel White Backlight
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

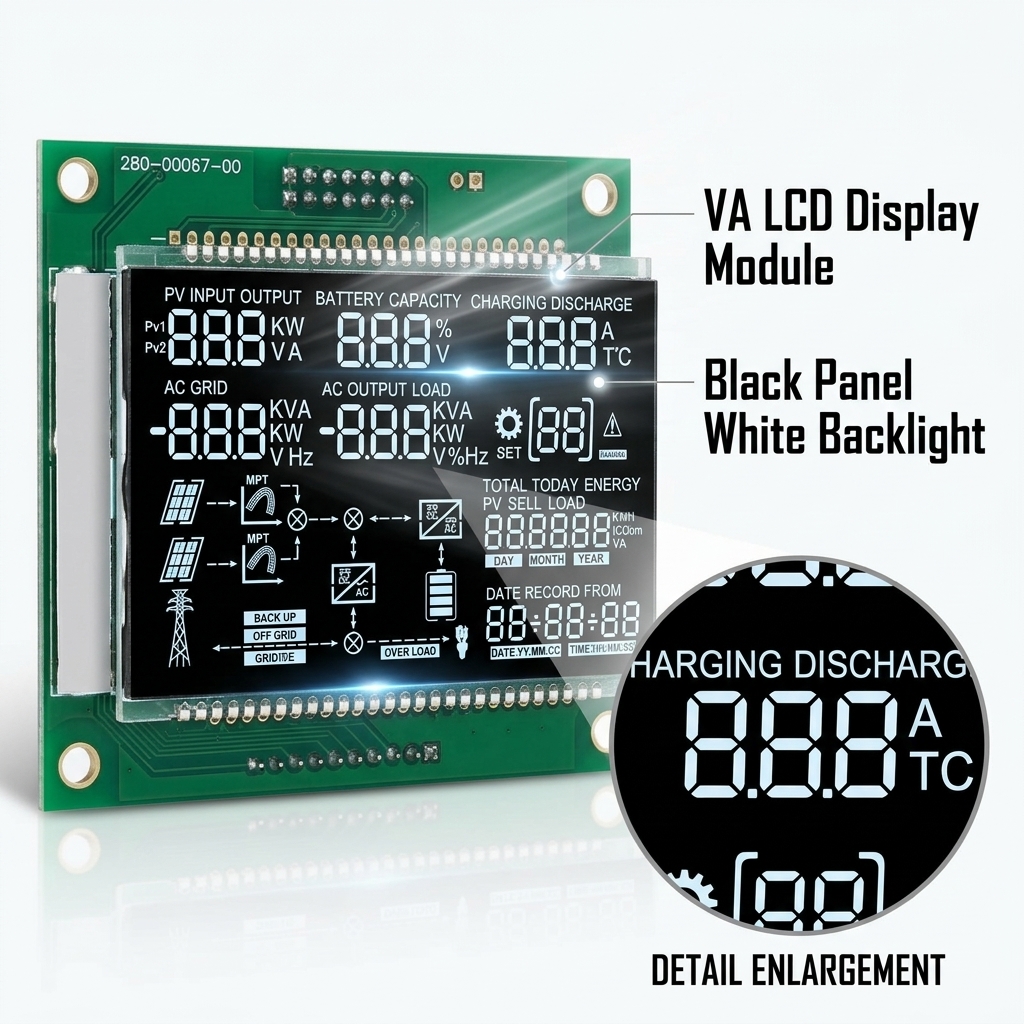

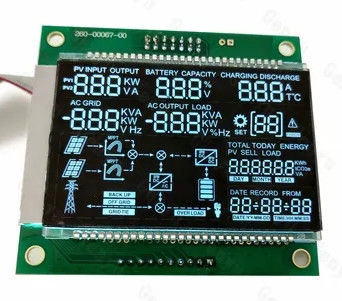

Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module
Product Features
Vertical Alignment Technology
  • In a VA LCD, the liquid crystals are aligned vertically when no voltage is applied. When voltage is applied, they align to allow or block light, creating visible images.
  • The vertical alignment provides better contrast ratios and deeper blacks compared to TN or IPS technologies.
Superior Contrast and Black Levels
  • VA LCDs produce deep blacks by effectively blocking light in the "off" state, achieving contrast ratios of 3000:1 to 6000:1 or more.
  • Excellent black levels make VA displays ideal for movies and dark environments.
Technical Specifications
Product Description Segmented VA LCD Display LCD type Segmented Display
Module Size 78(W)*71(H)*16.3(T) mm Display mode VA, Negative
LCD viewing area 67.99(W)*42.99(H) mm Polarizer type Transmissive
Driver IC HT1623 LED backlight White, 4pcs, 60mA
Drive method 1/8 Duty, 1/4 Bias Working voltage 5.0V
Viewing angle 6 O'clock Connection Way COB+PIN, 56 numbers
Operate temperature -30℃~+80℃ Storage temperature -30~+80℃
Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module 0 Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module 1
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements.

Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module 2

Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping - any preferred method.

Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module 3
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: Please send your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
2. This LCD is what we want but too large - do you have smaller sizes?
Answer: For segment type LCD modules, modifying size or display content requires new tooling for a custom LCD glass module.
3. This LCD is HTN type but I want STN type - can you make it?
Answer: Yes, we can modify the display type per your request.
4. Can you customize a new LCD module?
Answer: Yes, please provide your drawing or specifications including outline size, display information, and technical requirements.
5. What is the lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment.
6. Can you send samples for checking?
Answer: Yes, sample orders are available.
7. What is the lead time?
Answer: Standard products ship in 1 day if in stock. Custom production takes 15-30 days.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom logo and model number printing
  • Competitive shipping rates through partner carriers
  • Professional technical support and after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response to customer inquiries
  • Full customization services for LCD displays
Product Applications

Household appliances: Refrigerators, air conditioners, water heaters, washing machines, microwave ovens, etc.

Communication equipment: Telephones, interphones, fax machines, wireless devices.

Automotive electronics: Entertainment systems, navigation, cameras, anti-theft devices.

Instruments: Water meters, electric meters, multimeters, electronic scales, analytical instruments.

Fitness equipment: Treadmills, fitness bikes, pedometers, weighing scales.

Financial: POS machines, tax control cash machines, banknote counters.

Consumer electronics: MP3 players, DVDs, electronic dictionaries, calculators.


Segmented VA LCD Display Black Panel White Backlight HT1623 COB PIN Module 4
