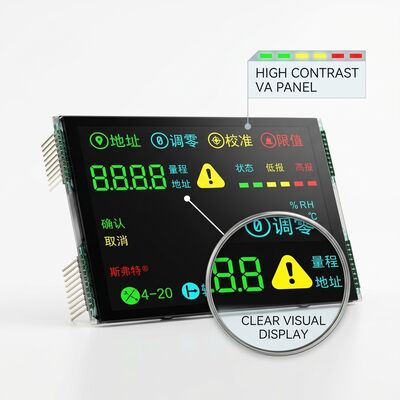

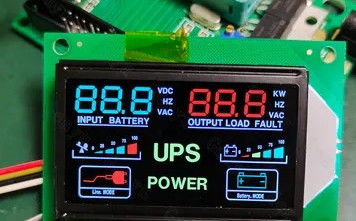

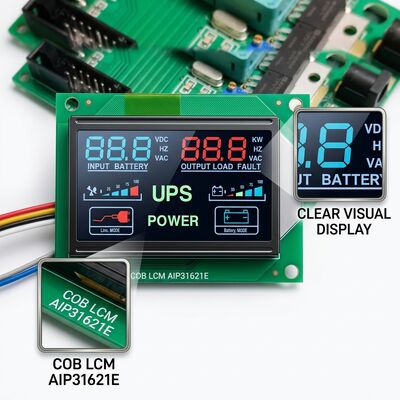

2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display

1000
MOQ
DISCUSSABLE
Price
2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display
Features Gallery Product Description Chat Now
Features
Specifications
Name: VA LCD Module
Viewing Direction: 12 O'clock
Driver Ic: AIP31621E
Production Capacity: 800000pieces/Year
Display Type: VA LCD Display
Size: 2.4 Inch
Driving Methor: Static/Dynamic
Customized: Customized
Transport Package: Carton/Pallet
Highlight:

2.4 inch VA LCD Module

,

VA LCD Module Customized

,

White Backlight UPS LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display
2.4 inch VA LCD Module Customized COB LCM AIP31621E Driver White Backlight UPS LCD Display
Advantages of VA LCDs
  • High Brightness: VA panels can achieve high peak brightness levels, making them suitable for both bright and dark environments.
  • Lower Power Consumption: VA LCDs are generally more power-efficient than IPS displays due to the nature of the liquid crystal alignment.
  • Excellent for Media: The high contrast and deep black levels make VA displays excellent for watching movies, gaming, or other applications where image depth is critical.
Detailed Parameters
Model Description VA LCD Module LCD type Segmented Display
Module Size 73.2(W) × 50(H) × 17.2(T) mm Display mode VA, Negative
LCD viewing area 51.7(W) × 27.5(H) mm Polarizer type Transmissive
Driver IC AIP31621E LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way COB+Zebra
Operate temperature 0℃~+70℃ Storage temperature -30~+80℃
2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display 0 2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display 1 2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display 2
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements. 2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display 3
Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any shipping method preferred. 2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display 4
Payment Method: 2.4 inch VA LCD Module COB LCM AIP31621E Driver White Backlight UPS LCD Display 5
FAQ
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.
This LCD is just what we want, but it is big size, do you have any smaller size?
For segment type LCD modules, modifying outline size or display content requires new LCD glass module and tooling.
This LCD display is HTN type, but I want STN type, can you make?
Yes, we can modify the display type as per your request.
I want to customize a new LCD module. Can you do?
Yes, please send your drawing or provide outline size and display specifications (glass thickness, polarizer, display type, etc.).
What is leading time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment.
Can you send us samples for checking?
Yes, sample orders are available.
What is the Leading Time?
Standard products: 1 day after payment. Custom products: 15-30 days for mass production.
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for defective products
  • Custom logo and model number printing
  • Competitive shipping rates through partner carriers
  • Professional technical support and after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display solutions based on your specifications
Product Applications
  • Household appliances: refrigerators, air conditioners, washing machines, etc.
  • Communication equipment: telephones, interphones, fax machines
  • Automotive electronics: entertainment systems, navigation, cameras
  • Instruments: water meters, electric meters, temperature meters
  • Fitness equipment: treadmills, pedometers, weighing scales
  • Financial: tax control machines, POS systems, banknote counters
  • Consumer electronics: MP3 players, electronic dictionaries, calculators
