Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display

1000
MOQ
DISCUSSABLE
Price
Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display
Features Gallery Product Description Chat Now
Features
Specifications
Name: RGB LED Backlight LCD Display
Driver Ic: SMT_HT1621
Driving Condition: 5.0 V
Polarizer Mode: Transmissive
Transport Package: Carton/Pallet
View Direction: 12 O'clock
Storage Temperature: -30~+80℃
Highlight:

VA LCD Display HT1621

,

Transmissive VA LCD Display

,

RGB LED Backlight LCD Display

Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description

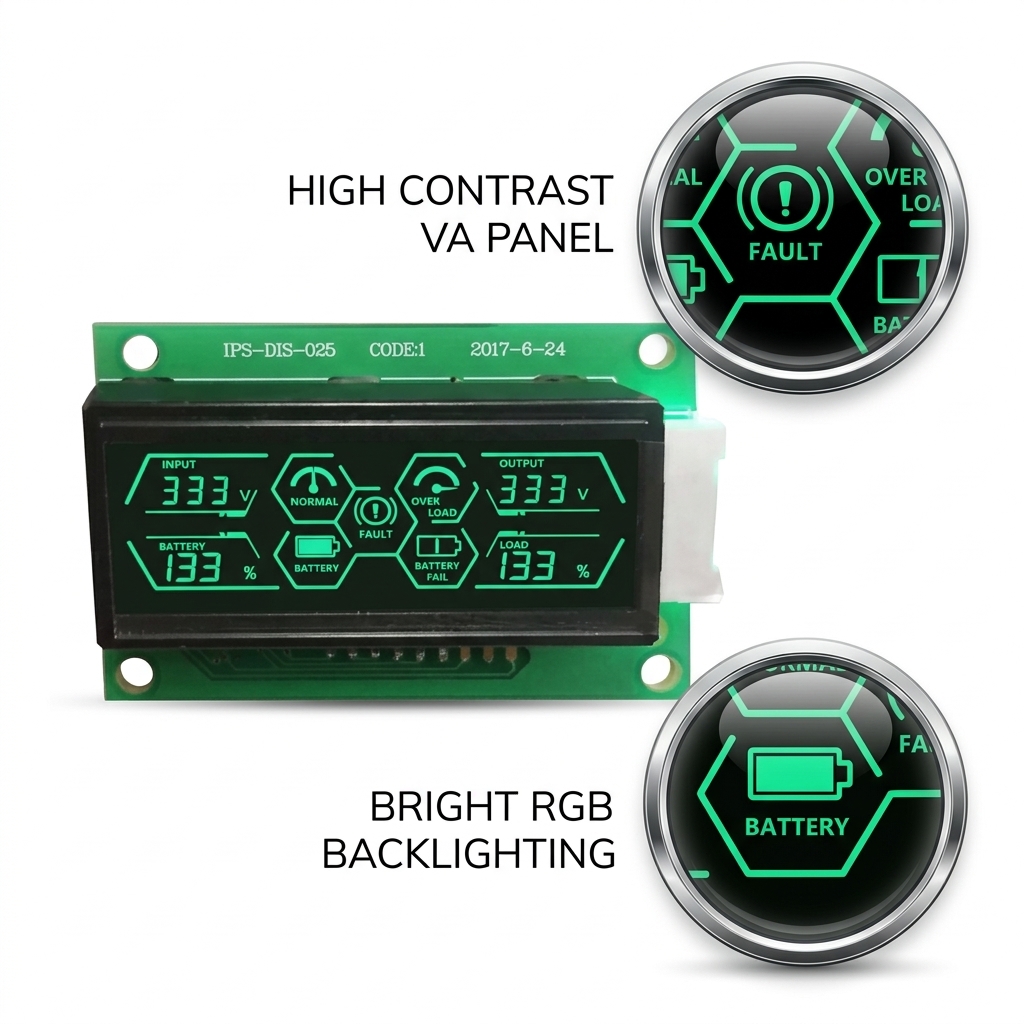

Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display
Advantages of VA LCDs
  • Superior Contrast and Black Levels: The vertical alignment of the liquid crystals gives VA panels their deep blacks and excellent contrast ratios, making them ideal for dark-room viewing and high-contrast content.
  • Better Viewing Angles than TN: Compared to TN panels, VA displays offer wider viewing angles and maintain better image quality when viewed from the side.
  • High Brightness: VA panels achieve high peak brightness levels, suitable for both bright and dark environments.
Detailed Parameters
Product Description VA LCD Display Black LCD type Segmented Display
Module Size 67.01(W)* 40.23(H)* 13(T) mm Display mode VA, Negative
LCD viewing area 53.5(W)* 18.9(H) mm Polarizer type Transmissive
Driver IC SMT_HT1621 LED backlight 2PCS RGB SMD LED
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way COB+Zebra
Operate temperature -20℃~+70℃ Storage temperature -30~+80℃
Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display 0 Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display 1
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.

Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display 2

Shipping: Express options including DHL, Fedex, EMS, UPS, air shipping, and sea shipping available based on customer preference.

Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display 3

Payment Method: Various payment options available.

Negative Transmissive VA LCD Display HT1621 Driver RGB LED Backlight LCD Display 4
FAQ
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.

This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

Answer: For segment type LCD modules, modifying outline size or display content requires new tooling for a custom LCD glass module.

This LCD display is HTN type, but I want STN type, can you make?

Answer: Yes, we can modify the display type according to your request.

I want to customize a new LCD module. Can you do?

Answer: Yes, please provide your drawing or specifications including outline size, display information, and technical requirements.

What is leading time for tooling?

Answer: Typically 15-25 days after drawing confirmation and tooling payment.

Can you send us samples for checking?

Answer: Yes, sample orders are available.

What is the Leading Time?

Answer: Standard products ship within 1 day if in stock. Custom production takes 15-30 days.

Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product issues
  • Custom logo and model number printing available
  • Competitive shipping rates through established partnerships
  • Professional technical support and after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display solutions based on your specifications
Product Applications
  • Household appliances: Refrigerators, air conditioners, fans, heaters, washing machines, microwave ovens, etc.
  • Communication equipment: Telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: On-board entertainment systems, navigators, car audio, cameras
  • Instruments: Water meters, electric meters, multimeters, electronic scales
  • Fitness equipment: Treadmills, fitness bikes, training devices, pedometers
  • Financial: Tax control cash machines, POS systems, banknote counting machines
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators
