Bar Type VA LCD Display with High Contrast Black Segment Screen / RGB Color

1000
MOQ
DISCUSSABLE
Price
Bar Type VA LCD Display with High Contrast Black Segment Screen / RGB Color
Features Gallery Product Description Chat Now
Features
Specifications
Display Technology: LCD
Type: VA Display
Pins Number: 49PINS
View Angle Direction: 6 O′clock
Driving Condition: 5.0 V
Display Mode: Negative
Connectors: PIN
Storage Temp: -30ºC-+80ºC
Highlight:

High Contrast VA LCD Display

,

VA Segment Display Module

,

Bar Type VA LCD Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Bar Type VA LCD Display with High Contrast Black Segment Screen / RGB Color
Bar Type VA LCD Display featuring black segment screen with RGB color backlight and 6 o'clock viewing angle.
Key Features
  • VA (Vertical Alignment) LCD technology for superior contrast
  • 6 o'clock viewing angle for optimal visibility from below
  • RGB color backlight for vibrant display options
  • Wide operating temperature range (-20℃ to +70℃)
  • Low power consumption design
Technical Specifications
LCD Type VA, Negative
Viewing Angle 6 O'clock
Operating Temperature -20~+70℃
Voltage 5.0V
Backlight RGB Color
Outline Dimension 341.5(W)* 96.5(H)* 2.8(T) mm
LCD Viewing Area 337.5(W)* 90.0(H) mm
Drive Method 1/1 Duty, 1/1 Bias
Connection PIN, 49 numbers
Storage Temperature -30~+80℃
Product Images

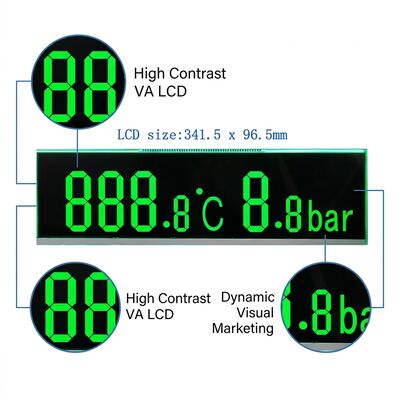

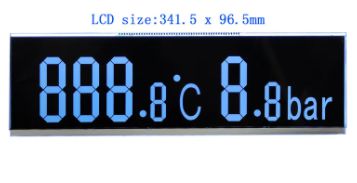

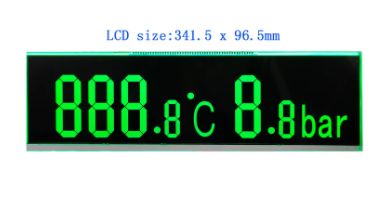

Bar Type VA LCD Display with High Contrast Black Segment Screen / RGB Color 0 Bar Type VA LCD Display with High Contrast Black Segment Screen / RGB Color 1 Bar Type VA LCD Display with High Contrast Black Segment Screen / RGB Color 2
Display Technology
VA (Vertical Alignment) liquid crystal display technology arranges liquid crystal molecules vertically to the substrate when no voltage is applied, making the screen appear black. When voltage is applied, the molecules align horizontally, allowing light to pass through and display white or other color segment information.
Viewing Angle Characteristics
The 6 o'clock viewing angle provides optimal visibility when viewing from below the screen (similar to the 6 o'clock position on a clock). This design ensures clear, distortion-free display in specific installation scenarios.
Applications
Ideal for vehicle instrument panels, industrial control equipment, outdoor power supplies, and energy storage devices due to its high contrast, wide viewing angle, and temperature adaptability.
Product Demonstration

Bar Type VA LCD Display with High Contrast Black Segment Screen / RGB Color 3

Tag:

VA LCD Panel

VA LCD Module

Segmented LCD Display
