VA LCD 4 Digit 7 Segment Display 2.5 Inch with 24PIN Interface

1000
MOQ
DISCUSSABLE
Price
VA LCD 4 Digit 7 Segment Display 2.5 Inch with 24PIN Interface
Features Gallery Product Description Chat Now
Features
Specifications
Drive Method: 1/4Duty, 1/3 Bias
Brightness: 250 Cd/m2
Viewing Angle: 12 O'clock
Outline Size: 48.0(W)* 65.0(H)* 2.8(T) Mm
Backlight Type: LED
Size: 2.5 Inch
Working Voltage: 3.3v
Connect: PIN, 24 Numbers
Highlight:

2.5 Inch VA LCD Module

,

VA 4 Digit 7 Segment Display

,

24PIN LCD TFT Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
VA LCD 4 Digit 7 Segment Display 2.5 Inch with 24PIN Interface
2.5 Inch VA LCD Display 4 Digit 7 Segment Screen 24PIN 6 O'clock

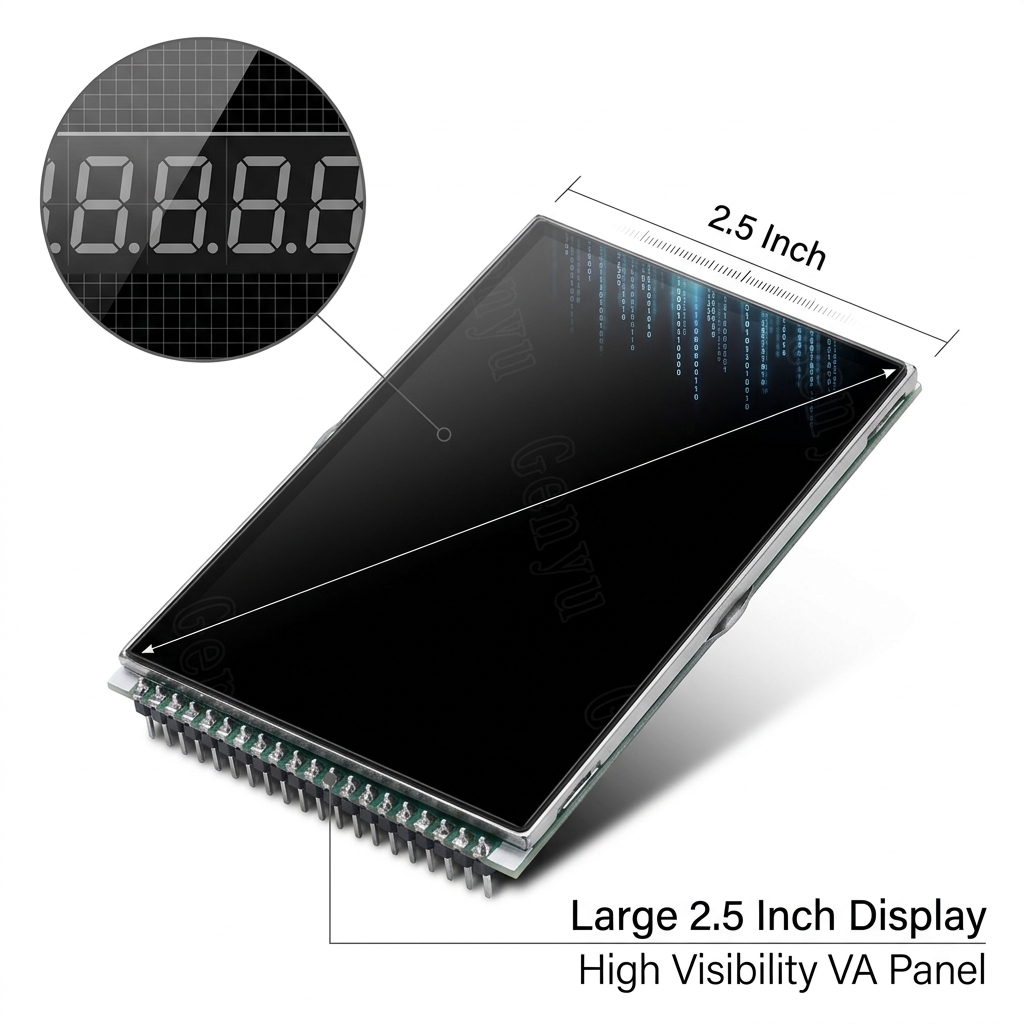

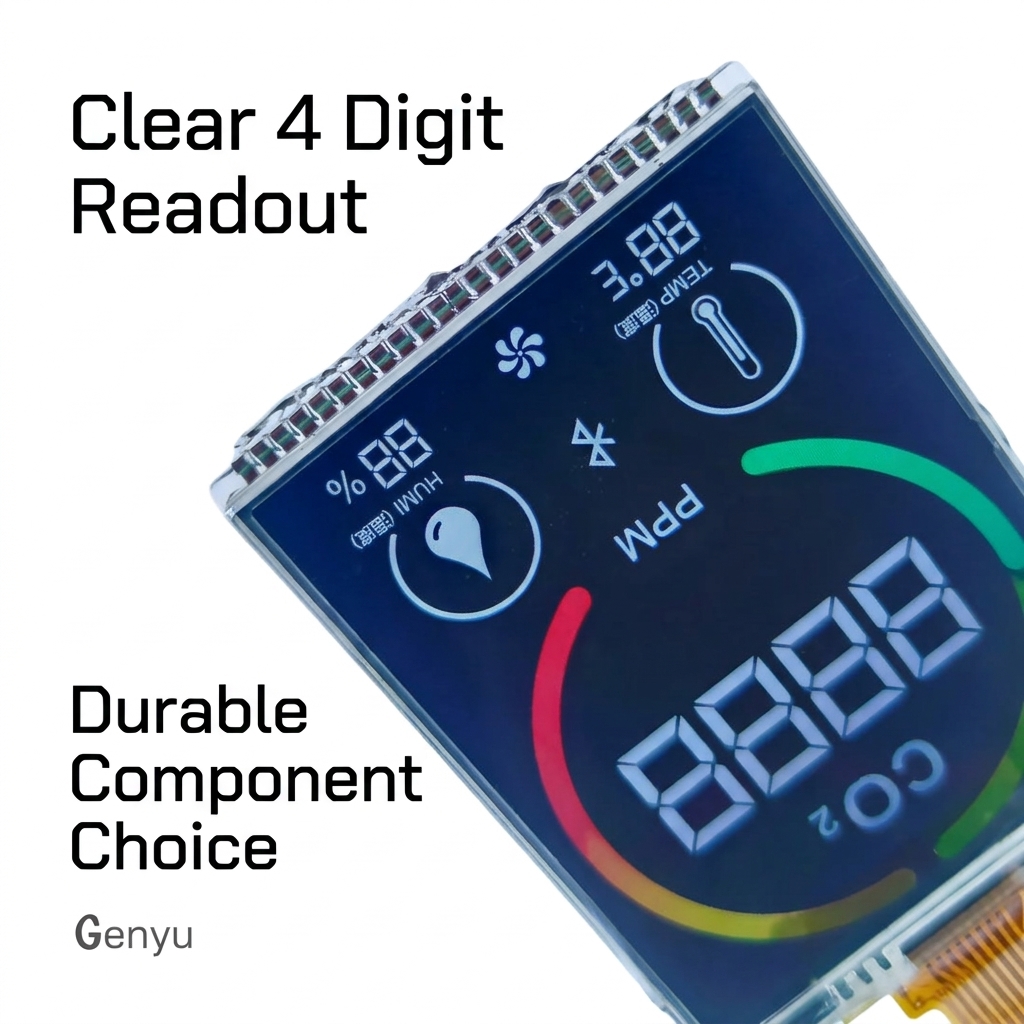

VA LCD 4 Digit 7 Segment Display 2.5 Inch with 24PIN Interface 0 VA LCD 4 Digit 7 Segment Display 2.5 Inch with 24PIN Interface 1
Key Specifications
Parameter Value
LCD Type VA, Negative
Viewing Angle 6 O'clock
Operating Temperature -20~+70℃
Voltage 5.0V
Backlight RGB Color
Detailed Technical Parameters
Outline dimension 48.0(W)* 65.0(H)* 2.8(T) mm Display mode VA, Negative
LCD viewing area 45(W)* 60(H) mm Polarizer type Transmissive
Driver IC / LED backlight White
Drive method 1/4Duty, 1/3 Bias Working voltage 3.3V
Viewing angle 12 O'clock Connection Way PIN, 24 numbers
Operate temperature -20℃~+70℃ Storage temperature -30~+80℃
Product Features
  • Compact Size: 2.5 inch diagonal display suitable for space-constrained applications
  • VA Technology: High contrast ratio with wide viewing angles for clear visibility
  • 4-Digit 7-Segment: Displays numerical values (0-9) and basic symbols with excellent readability
  • 24-Pin Interface: MCU-compatible connection for easy integration with control circuits
  • Optimized Viewing: 6 o'clock viewing angle provides best display quality when viewed from below
  • Robust Performance: Operates from -20℃ to +70℃ for industrial and commercial applications
VA LCD 4 Digit 7 Segment Display 2.5 Inch with 24PIN Interface 2
