6 O'clock Viewing Angle VA LCD Display 4.5V 9PIN for White Graphics on Black Panel Long Strip

1000
MOQ
DISCUSSABLE
Price
6 O'clock Viewing Angle VA LCD Display 4.5V 9PIN for White Graphics on Black Panel Long Strip
Features Gallery Product Description Chat Now
Features
Specifications
VA Size: 76(W)* 16(H) Mm
Viewing Angle: 6 O'clock
Display Mode: VA, Negative
Module Size: 80(W)* 22.5(H)* 2.0(T) Mm
Touchscreen: No
Working Voltage: 4.5V
Fpc Connect: PIN, 9 Numbers
Operating Temp.: -20~+70℃
Highlight:

4.5V VA LCD Display

,

9PIN LCD TFT Screen

,

6 O'clock Viewing Angle Black Panel LCD
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
6 O'clock Viewing Angle VA LCD Display 4.5V 9PIN for White Graphics on Black Panel Long Strip
4.5V 9PIN VA LCD Display White Graphics Black Panel Long Strip
Product Overview

A black segment LCD is a type of Liquid Crystal Display that uses segments to display numbers, icons, or graphical elements against a typically light or colored background. The black segments appear because liquid crystals block light in the activated regions, creating sharp and clear contrasts for excellent readability.

Technical Specifications
LCD Type VA, Negative
Viewing Angle 6 O'clock
Operating Temperature -20~+70℃
Voltage 4.5V
Connector PIN
Detailed Parameters
Module size 80(W)* 22.5(H)* 2.0(T) mm Display mode VA, Negative
LCD viewing area 76(W)* 16(H) mm Polarizer type Transmissive
Operating temp. -20~+70℃ LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 4.5V
Viewing angle 6 O'clock Connection Way PIN, 9 numbers
How Black Segment LCDs Work
  • Passive Matrix Design: Utilizes a grid of electrodes to activate specific segments by applying voltage, creating a black appearance.
  • Polarizers and Liquid Crystals: Polarizers and aligned liquid crystals block light in activated regions, producing black segments.
Product Features
  • Display Technology: VA (Vertical Alignment) technology provides high contrast on black background with clear white graphics
  • Pin Configuration: 9PIN design enables connection with external circuits for power, ground, data transmission and control signals
  • Power Efficiency: 4.5V working voltage offers energy-saving features for low-power devices
  • Form Factor: Long strip shape ideal for space-constrained applications and linear display requirements

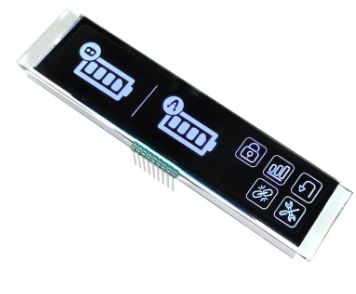

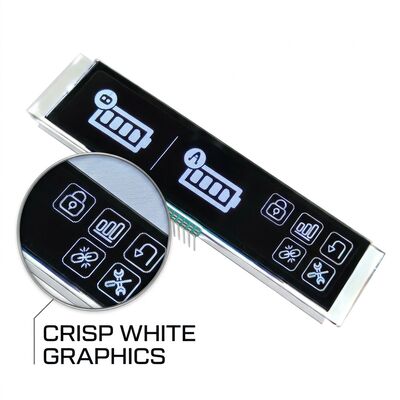

6 O'clock Viewing Angle VA LCD Display 4.5V 9PIN for White Graphics on Black Panel Long Strip 0 6 O'clock Viewing Angle VA LCD Display 4.5V 9PIN for White Graphics on Black Panel Long Strip 1

6 O'clock Viewing Angle VA LCD Display 4.5V 9PIN for White Graphics on Black Panel Long Strip 2
