Features

Specifications

Backlight Type: LED

Backlight: White

Connector Type: PIN(Customized)

VA Size: 105(W)* 51(H) Mm

Display Mode: VA, Negative

View Angle Direction: 12 O′clock

Connector: Pin

Driving Condition: 3.3V

Highlight:

105Wx51H mm VA LCD Panel

12 O'Clock Viewing Angle LCD Segment Display

High Contrast LCD Display 3.3V

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

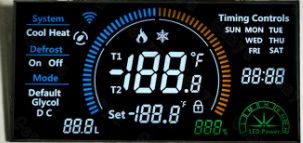

12 O'Clock Viewing Angle VA LCD Panel 3.3V With 105(W)*51(H) Mm Viewing Area

Product Description

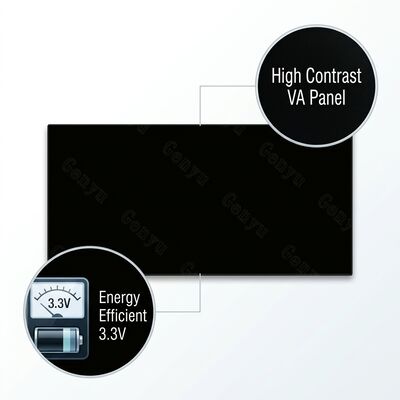

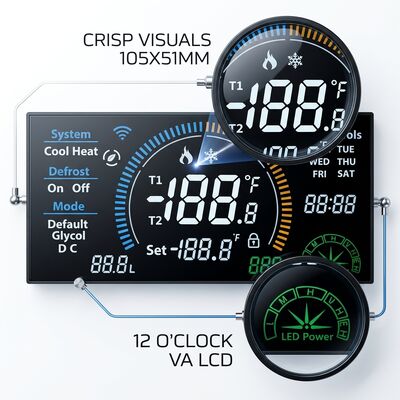

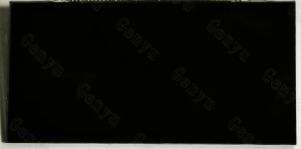

12 O'Clock Viewing Angle VA LCD Panel 3.3V With 105(W)*51(H) Mm Viewing Area

3.3V VA LCD Display Panel Black LCD Segment Display 46PIN White Backlight
High-quality VA LCD screen panel featuring black segment display with 3.3V operation and 46PIN white backlight.

Technical Specifications

LCD Type	VA, Negative
Viewing Angle	12 O'clock
Operating Temperature	-20~+70℃
Voltage	3.3V
Connector	PIN

Detailed Parameters

Outline dimension	108(W)* 56(H)* 3.1(T) mm	Display mode	VA, Negative
LCD viewing area	105(W)* 51(H) mm	Polarizer type	Transmissive
Operating temp.	-20~+70℃	LED backlight	White
Drive method	1/4 Duty, 1/3 Bias	Working voltage	3.3V
Viewing angle	12 O'clock	Connection Way	PIN, 46 numbers

Key Features

High Contrast: Produces deeper black background with brighter, more vivid segments for excellent visibility.
Wide Viewing Angles: Offers superior readability with up to 170° viewing angles in both directions.
Energy Efficiency: Low power consumption ideal for battery-operated devices.
Temperature Tolerance: Reliable operation from -20°C to 70°C.
Customizable Designs: Supports custom segments for specific applications including icons, numbers, and bar graphs.

Applications

This 3.3V VA LCD panel with black segments and white backlight is versatile for multiple industrial and commercial applications:

Smart Electricity Meters: Clearly displays consumption data, fees, and usage status with high contrast.
Industrial Control Equipment: Ideal for displaying working status, parameters, and alarms in PLCs and frequency converters.
Medical Instruments: Perfect for blood glucose meters and blood pressure monitors with clear data display.
Household Appliances: Used in microwaves, air conditioners, and refrigerators for status and mode displays.
Portable Instruments: Suitable for handheld multimeters and gas detectors with its compact design and low power consumption.
