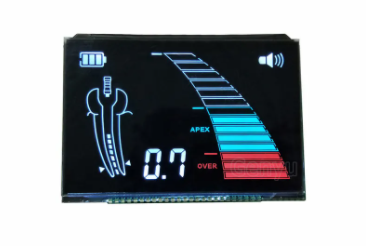

Black VA LCD Display 25PIN 5.0V 12 O'clock Transmissive

1000
MOQ
DISCUSSABLE
Price
Black VA LCD Display 25PIN 5.0V 12 O'clock Transmissive
Features Gallery Product Description Chat Now
Features
Specifications
Dimensions: 99.5(W)* 67.7(H)* 2.8(T) Mm
Drive Condition: 1/4 Duty1/3bias
Display Mode: VA, Negative
Number Of Pins: 25 Pin
Voltage: 5.0 V
Color: Black
Viewing Direction: 12 O'clock
Operating Temperature: -20~+70℃
Highlight:

Black VA LCD Display 25PIN

,

5.0V VA LCD Display

,

12 O'clock Transmissive VA LCD
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
Black VA LCD Display 25PIN 5.0V 12 O'clock Transmissive
Black VA Segmented LCD Display 25PIN 12 O'clock Transmissive
Detailed Specifications
Outline Dimension 99.5(W)* 67.7(H)* 2.8(T) mm Display mode VA, Negative
LCD viewing area 95.5(W)* 59.0(H) mm Polarizer type Transmissive
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way PIN, 25 numbers
Operate temperature -20℃~+70℃ LED Backlight White
Key Features
  • Liquid crystals are vertically aligned to the glass substrate when no voltage is applied, blocking light and producing deep black levels
  • When voltage is applied, the crystals tilt, allowing light to pass through
Product Advantages
  • High Contrast Ratio: Exceptional black levels and vibrant colors
  • Wide Viewing Angles: Better than TN but slightly narrower than IPS
  • Good Color Accuracy: Makes it suitable for multimedia applications
  • Energy Efficient: Consumes less power compared to other LCD types in static images
Considerations
  • Slower Response Times: Motion blur can occur in fast-moving visuals
  • Higher Cost: More expensive than TN LCDs
Black VA LCD Display 25PIN 5.0V 12 O'clock Transmissive 0 Black VA LCD Display 25PIN 5.0V 12 O'clock Transmissive 1
Technical Overview
The black VA segmented LCD monitor employs Vertical Alignment (VA) technology, offering high contrast and good viewing angle performance. The "25PIN" designation refers to the 25-pin interface used for device connection, enabling both data transmission and power supply functions. The "12 o'clock direction" indicates the optimal viewing angle, where image display quality is best when viewed directly from the front, analogous to the viewing angle at 12 o'clock on a clock face.
