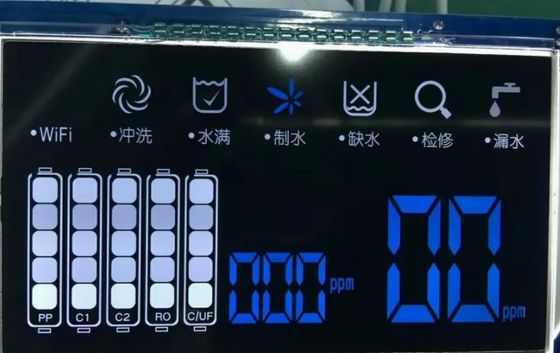

Customize Glass LCD Display Module Vatn Tn Htn Va Temperature Segment LCD Display
High-quality customizable LCD display module with various specifications for industrial and commercial applications.
Basic Information
| Touch Screen Type |
Surface Acoustic Wave |
| Type |
LCM |
| Response Time |
3ms |
| Viewing Angle |
IPS |
| Display Technology |
TFT |
| DOT-Matrix Graphic LCD Module Type |
Row/Column-Driven Control Type |
| LCD Drive Mode |
Static Drive LCD Module |
| Size |
35.6*40.6*4.0 |
| Use |
Calculator/Price Mark |
| Outer Package |
Carton |
| Application |
Advertising/Instrument Panel |
| Specification |
CE FCC ROHS |
General Specification
| Power Supply |
3.0V |
| Display Type |
STN, POSITIVE, TRANSFLECTIVE |
| Viewing Direction |
12.00 O'clock |
| LCD Driving Method |
1/65 Duty, 1/9 Bias, 3.0V |
| Driver IC |
ST7565R |
Layout Drawing
Product Applications
Production Line
- Clean Room class 10k@0.8um, Pressure 0.8kgf
- Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
- COG production lines: 4
- Backlight production lines: 2
- Existing machine capacity will be 1KK per month
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any shipping method preferred by customer.
Payment Method
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing paper. If you don't have specifications, you can provide samples; we will recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can change the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper or provide outline size, display information (glass thickness, polarizer, display type, connector mode, storage temp, operating temp, supply voltage, viewing direction, drive condition).
5. What is lead time for tooling?
Answer: Typically 15 to 25 days after drawing confirmation and tooling charge payment. Exact time will be confirmed after drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: For standard products in stock, lead time is one day after payment. For special mass production, lead time is about 15-30 days. We will inform you if we can finish earlier.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days after shipment for product problems
- Custom logo printing and model number labeling
- Competitive shipping rates through long-term partnerships
- Professional technical support and after-sales service
- All products inspected and tested by engineers and QC/QA before shipment
- Customer satisfaction guarantee with 24-hour response time
- Custom LCD display solutions based on your specifications or drawings
