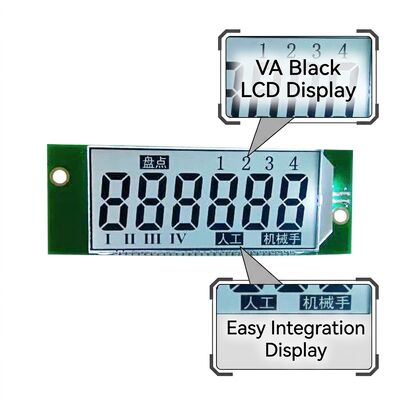

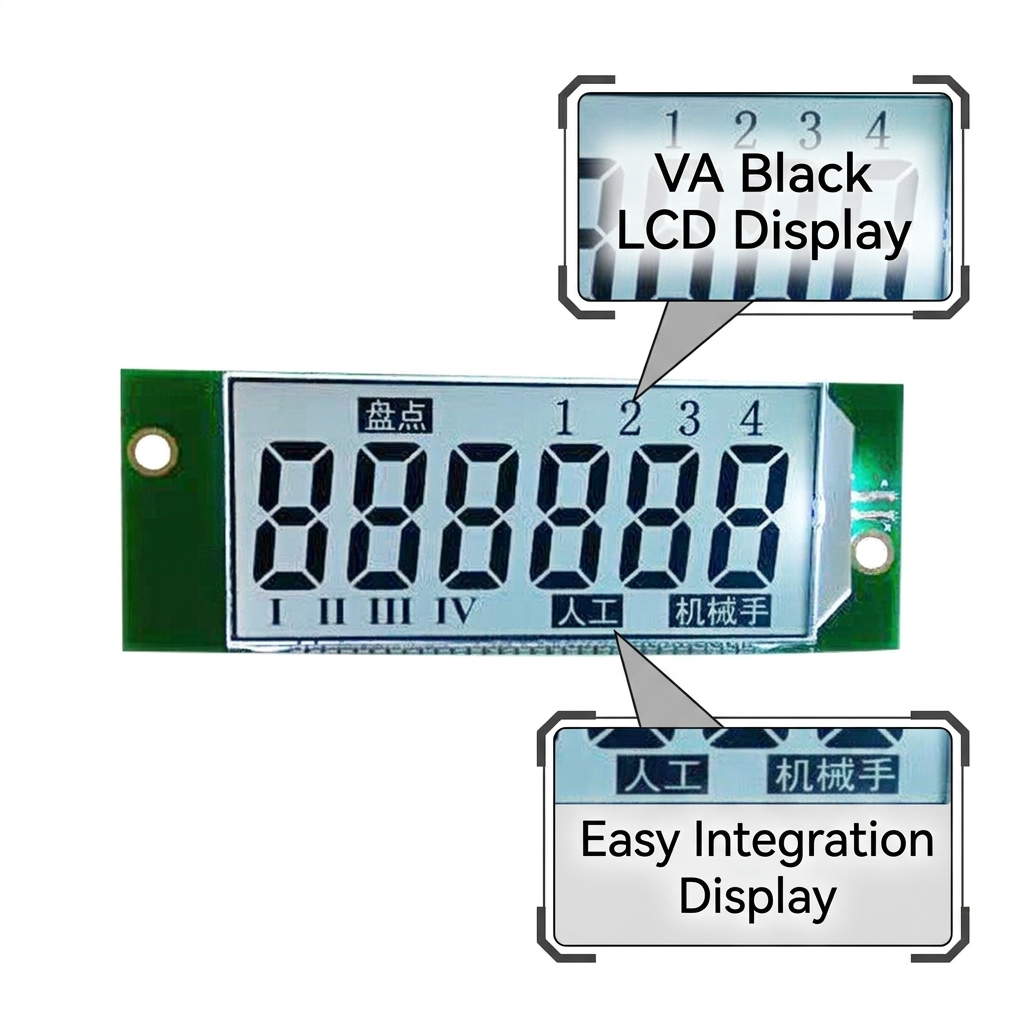

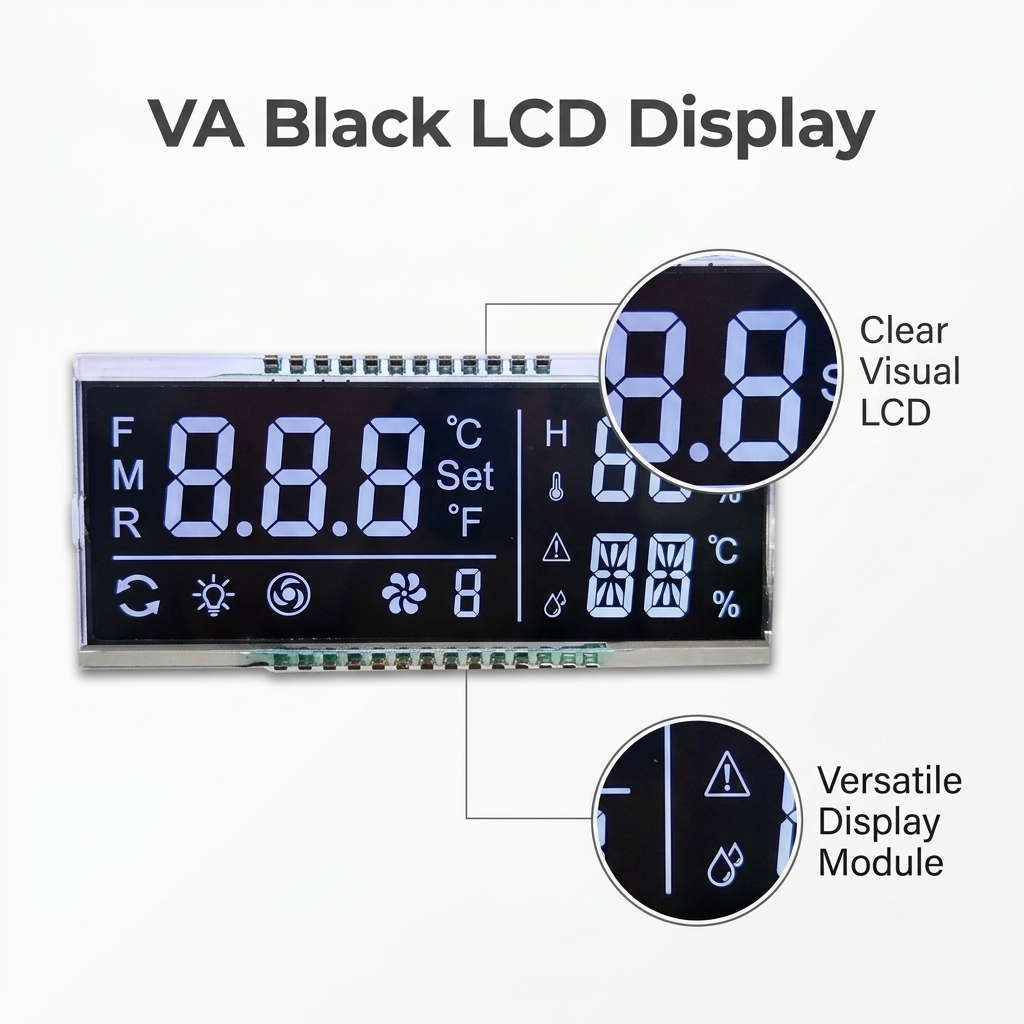

VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight

1000
MOQ
DISCUSSABLE
Price
VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight
Features Gallery Product Description Chat Now
Features
Specifications
Name: VA LCD Display
Display Mode: VA, Negative
Backgound: Black Color
Display Type: VA LCD
Operating Temp.: -10~+60℃
Driving Method: 1 / 4 Duty , 1 / 3 Bias
Connectors: PIN, 28 Numbers
Highlight:

VA Black LCD Display

,

Black LCD Display Screen

,

5V LCD Display PIN Connect
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Model Number: BBI-001
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight
VA Black LCD Display Screen with 5V voltage PIN connection and white backlight, offering high visibility and reliable performance.
Design and Customization Options:
  • Segment Shapes: Choose from standard designs (7-segment or 14-segment) or custom layouts with icons and graphics.
  • Background Colors: Select light backgrounds like white, grey, or custom shades to complement your device design.
  • Size and Resolution: Define dimensions and resolution to fit your device requirements.
  • Interface Options: Compatible with common driver ICs and interfaces (I²C, SPI, or parallel).
  • Backlighting: Integrated LED backlighting for low-light environments.
  • Temperature Tolerance: Customize for standard (-20°C to 70°C) or extended (-30°C to 85°C) operating ranges.
Detailed Parameters:
Model Description Black LCD Display Screen LCD type Segmented Display
Module size 74(W)* 32(H)* 2.8(T) mm Display mode VA, Negative
LCD viewing area 71(W)* 25(H) mm Polarizer type Transmissive
Operating temp. -10~+60℃ LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way PIN, 28 numbers
VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight 0 VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight 1 VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight 2
Packaging & Shipping:

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, varying by country regulations.

VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight 3

Shipping: Express options including DHL, Fedex, EMS, UPS, air shipping, and sea shipping available based on customer preference.

VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight 4
FAQ:
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

Answer: No problem. Please send us your specification/drawing. If unavailable, we can recommend suitable standard products or customize based on your requirements.

2. This LCD is what we want, but it's too big. Do you have smaller sizes?

Answer: For segment type LCD modules, modifying outline size or display content requires new LCD glass module and tooling.

3. This LCD display is HTN type, but I want STN type. Can you make it?

Answer: Yes, we can modify the display type according to your request.

4. I want to customize a new LCD module. Can you do it?

Answer: Yes. Please send your drawing or provide outline size, display information, and specifications for customization.

5. What is the lead time for tooling?

Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact time will be confirmed upon drawing approval.

6. Can you send samples for checking?

Answer: Yes, sample orders are available.

7. What is the lead time?

Answer: Standard products in stock ship within 1 day. Special mass production takes 15-30 days, with earlier completion updates when possible.

Our Services:
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo and model number printing available
  • Discounted shipping rates through long-term partnerships
  • Professional technical support and responsive after-sales service
  • Rigorous quality inspection before shipment
  • 24-hour response to customer inquiries
  • Custom LCD display manufacturing based on specifications
Product Applications:
  • Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, washing machines, microwave ovens, rice cookers
  • Communication equipment: Telephones, interphones, fax machines, wireless wifi
  • Automotive electronics: On-board entertainment systems, navigators, car audio, reverse cameras
  • Instruments: Water meters, electric meters, multimeters, electronic scales, pressure meters
  • Fitness equipment: Treadmills, fitness bikes, pedometers, electronic sphygmomanometers
  • Financial: Tax control cash machines, POS systems, banknote counting machines
  • Consumer electronics: MP3/MP4 players, electronic dictionaries, calculators, electronic clocks

VA Black LCD Display Screen 5V LCD Display PIN Connect With White Backlight 5
