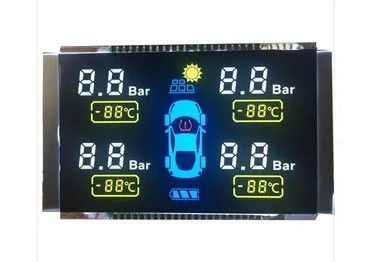

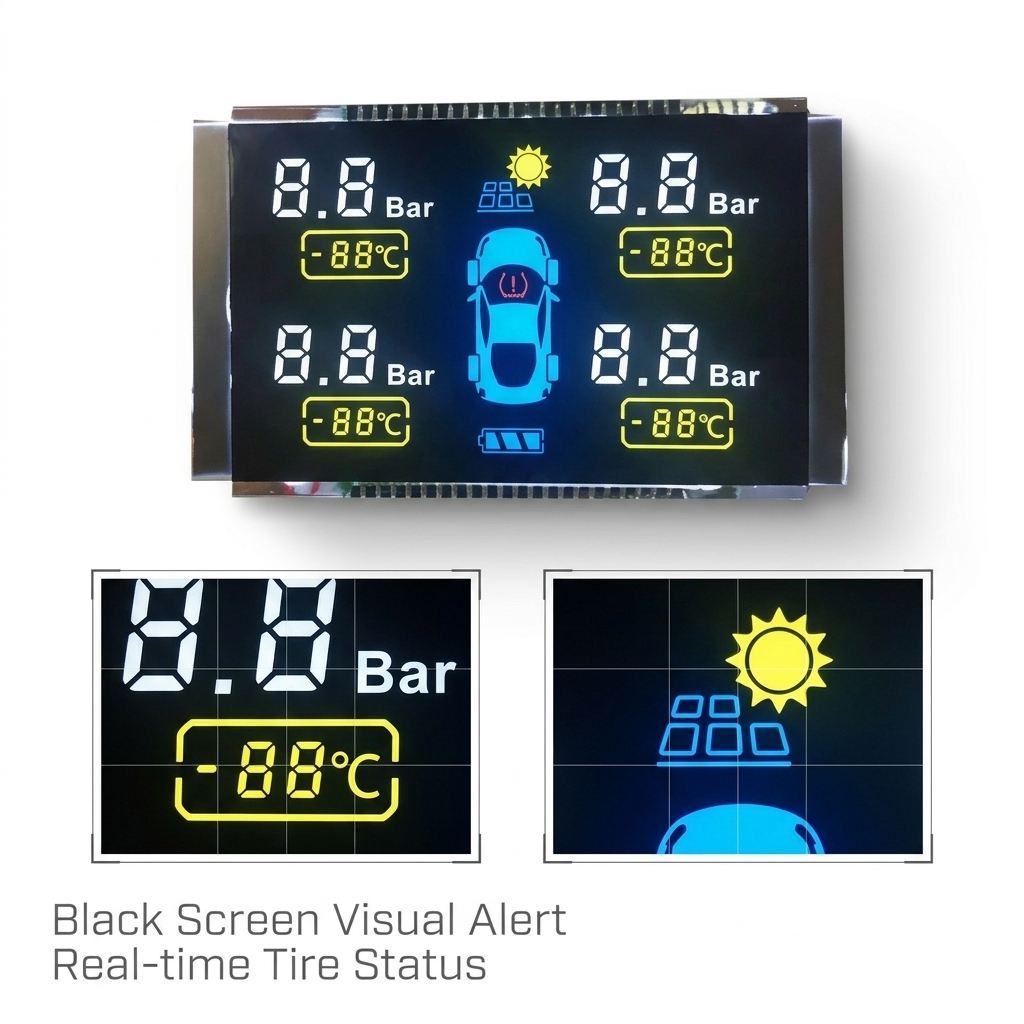

VA Segmented LCD Display Black Screen Module For Car Tire Pressure
Product Description
This VA Segment LCD utilizes Vertical Alignment (VA) technology, delivering high contrast, deep blacks, and wider viewing angles compared to TN-based segmented displays. These features make it ideal for applications requiring clarity, legibility, and visibility across various lighting conditions.
VA segment displays are commonly used in consumer electronics, automotive dashboards, industrial equipment, and home appliances where simple numeric or alphanumeric readouts are needed. While offering excellent visual performance for basic displays, they have limitations in color reproduction and resolution compared to more advanced technologies.
Detailed Specifications
| No. |
Item |
Specifications |
| 1 |
Model Description |
LCD Display Black Screen |
| 2 |
LCD Type |
VA negative, transmissive |
| 3 |
Viewing Angle |
12 O'clock |
| 4 |
Drive Method |
1/8 Duty, 1/4 Bias, 5.0V |
| 5 |
Operating Temperature |
-30~+80℃ |
| 6 |
Storage Temperature |
-40~+90℃ |
| 7 |
Connector |
PIN, 26 numbers |
| 8 |
LED Backlight |
White |
| 9 |
LCD Outline Dimension |
79(W)* 47(H)* 2(T) mm |
| 10 |
LCD View Area |
76(W)* 40(H) mm |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Available via DHL, FedEx, EMS, UPS, air shipping, or sea shipping - customer's preferred method.
Payment Method
Frequently Asked Questions
I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
We can accommodate this request. Please provide your specifications/drawing or samples, and we'll recommend suitable options or customize based on your requirements.
This LCD is what we want, but it's too big. Can you make a smaller size with modified display content?
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with corresponding tooling.
This LCD display is HTN type, but I want STN type. Can you make it?
Yes, we can modify the display type according to your request.
Can you customize a new LCD module?
Yes, we can customize based on your specifications. Please provide your drawing or details about outline size, display information, and technical requirements.
What is the lead time for tooling?
Typically 15-25 days after drawing confirmation and tooling payment. Exact timing will be confirmed upon drawing approval.
Can you send samples for checking?
Yes, sample orders are available.
What is the lead time?
For standard products in stock: 1 day after payment. For mass production of special orders: 15-30 days (we'll update if completed earlier).
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo and model number printing available
- Competitive shipping rates through established partnerships
- Professional technical support and responsive after-sales service
- Rigorous quality control with pre-shipment inspection
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications
Application Fields
Audio products
Medical equipment
Industrial products
Automobiles
Sports equipment
Watches
Household appliances
