Features

Specifications

Duty: 1/4

Customized: Customized

Polarizer: Transmissive

Operating Voltage: 3.3-5V

Working: 0 To 50℃

Connector: PIN

Control Ic: AIP31621E

Backligaht: Backlight

Highlight:

HTN white on blue LCD display

7 segment display with COB driver

AIP31621 driver 7 segment LCD

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

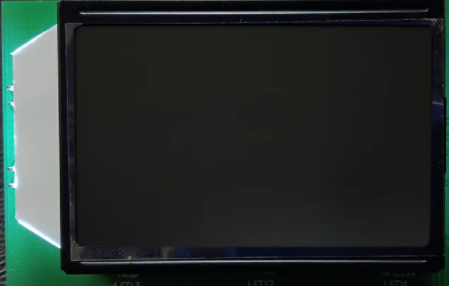

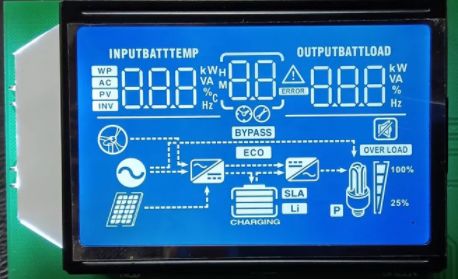

LCD 7 Segment Display HTN White On Blue Chip On Board AIP31621 Driver

Product Description

LCD 7 Segment Display HTN White On Blue Chip On Board AIP31621 Driver

Detail Information

LCD Type:	HTN, Negative
Viewing Angle:	12 O'clock
Operating Temperature:	0~+50℃
Voltage:	5.0V
Driver IC:	AIP31621E
Backlight:	White

Detailed Parameters

NO.	ITEM	SPECIFICATIONS
1	Model Number	BBI31621
2	LCD Type	HTN negative, transmissive
3	Viewing Angle	12 O'clock
4	Drive Method	1/4 Duty, 1/3 Bias, 5.0V
5	Operating Temperature	0~+50℃
6	Storage Temperature	-10~+60℃
7	Driver IC	AIP31621E
8	Connector	COB+Zebra
9	Backlight	LED, white, 30mA
10	Module Size	83(W)* 75(H)* 12(T) mm
11	LCD View Area	51.6(W)* 32.50(H) mm

Advantages of HTN Blue LCD

Improved Contrast: Higher contrast ratios compared to standard TN displays, leading to more legible text and numbers.
Better Viewing Angles: The HTN technology offers better viewing angles than TN, which is helpful when reading the display from off-center.
Power Efficiency: Like most LCDs, HTN Blue displays are efficient in terms of power consumption, making them ideal for portable devices.
Aesthetic Appeal: The blue backlight provides a modern, high-contrast look, preferred for display aesthetics in consumer electronics and industrial applications.
