Home /Products/7 Segment LCD Display/5.0V 7 Segment Screen TN Monochrome LCD Display White LED Backlight

5.0V 7 Segment Screen TN Monochrome LCD Display White LED Backlight

1000
MOQ
DISCUSSABLE
Price
5.0V 7 Segment Screen TN Monochrome LCD Display White LED Backlight
Features Gallery Product Description Chat Now
Features
Specifications
Working Supply: 5.0V
Drive Mode: 1/4 Duty, 1/3 Bias
Interface Type: COB+Zebra
View Angle Direction: 12o'clock
Storage Temperature: -30°C To 80°C
Backgroundcolor: White
Highlight:

5.0V Seven Segment LCD Display

,

TN Monochrome LCD Display

,

LED Backlight 7 Segment Screen
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
5.0V 7 Segment Screen TN Monochrome LCD Display White LED Backlight
This TN monochrome LCD display features a 7-segment screen with white LED backlight, designed for clear numeric information display in various industrial and consumer applications.
Technical Specifications
LCD Type TN, Positive
Viewing Angle 12 O'clock
Operating Temperature -20~+70℃
Voltage 5.0V
Backlight Green
Driver IC HT1621
Module Size 125(W)* 73.5(H)* 21.3(T) mm Display mode TN, positive
LCD viewing area 51.4(W)* 32(H) mm Polarizer type Transmissive
Driver IC HT1621 LED backlight White, 2pcs, 30mA
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way COB+Zebra
Operate temperature -20℃~+70℃ Storage temperature -30~+80℃
Applications of TN Segment LCDs
  • Digital Clocks: For displaying the time, often with 7-segment displays.
  • Calculators: Basic handheld calculators often use 7-segment LCD displays.
  • Household Appliances: Simple displays on devices like microwaves, washing machines, and refrigerators for showing settings, timers, or status information.
  • Meters and Instruments: Devices such as thermometers, voltage meters, pressure gauges, and other diagnostic tools use TN segment displays to show readings in a clear, readable format.

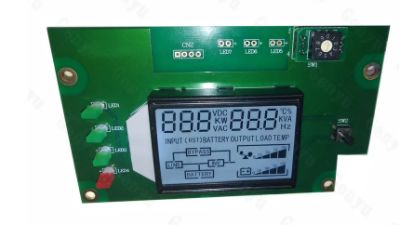

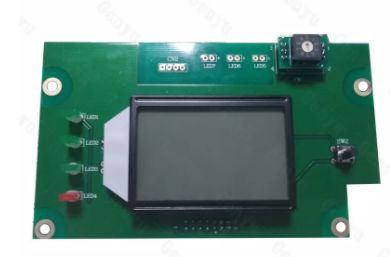

5.0V 7 Segment Screen TN Monochrome LCD Display White LED Backlight 0 5.0V 7 Segment Screen TN Monochrome LCD Display White LED Backlight 1
Advantages of TN Segment LCDs
  • Low Cost: TN LCDs are the most cost-effective option for simple displays. They are cheap to produce and are used in a wide range of devices that don't require high-end display performance.
  • Energy Efficient: TN segment displays consume very little power compared to more advanced technologies like OLED or IPS, making them ideal for battery-powered devices.
  • Fast Response Time: TN displays offer fast response times, which can be beneficial for fast updates in devices like clocks, calculators, and other applications where quick, simple text or numeric changes are needed.
  • Simple and Reliable: Since TN segment LCDs are based on a simple technology, they are reliable for basic applications. They are robust, and their low complexity makes them less prone to failure compared to more advanced display technologies.
Our Services
  • Free repair within one year after the shipment of products from us.
  • Replacement within 30 days after the shipment of products from us due to products' problems.
  • We can print your logo and stick your model No. on the displays.
  • We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
  • Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
  • All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
  • Customers satisfactory is most important to us. If you have any problem or questions regarding our transaction, please contact us by Email or online. It will be responded within 24 hours.
  • Products pictures only for your reference. Please kindly refer to the specification. We can provide the products based on the specification, or you can offer your own specification or drawing. We can customize all kinds of LCD displays for you.

5.0V 7 Segment Screen TN Monochrome LCD Display White LED Backlight 2
