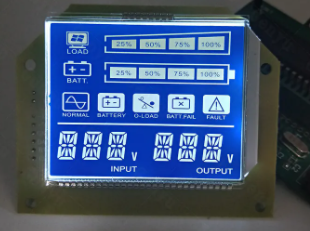

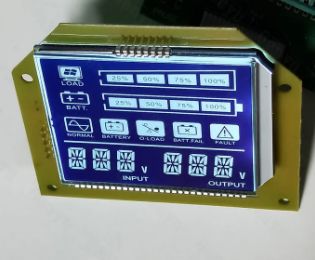

TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621

1000
MOQ
DISCUSSABLE
Price
TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621
Features Gallery Product Description Chat Now
Features
Specifications
Vop: 5V
View Area: 54(W)* 43(H) Mm
Connector: COB+PIN, 36 Numbers
View Angle Direction: 12o'clock
Drive Method: 1/4 Duty, 1/3 Bias
Polarizer: Transmissive
Control Ic: SMT_HT1621
Storage Temperature: -20°C To 70°C
Highlight:

White Backlight 7 Segment Display

,

Dark Background TN LCD Screen

,

SMT HT1621 7 Segment Display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621
TN LCD Screen 7 Segment Display Dark Background White Backlight SMT_HT1621
Detail Information
LCD Type: TN, Negative
Viewing Angle: 12 O'clock
Operating Temperature: -10~+60℃
Voltage: 5.0V
Backlight: White
Driver IC: SMT_HT1621
Module Size 65(W)* 65(H)* 10(T) mm Display mode TN, Negative
LCD viewing area 54(W)* 43(H) mm Polarizer type Transmissive
Driver IC SMT_HT1621 LED backlight White
Drive method 1/4 Duty, 1/3 Bias Working voltage 5.0V
Viewing angle 12 O'clock Connection Way COB+PIN, 36 numbers
Operate temperature -10℃~+60℃ Storage temperature -20~+70℃
Product Description
Segment LCD TN Dark Background White Backlight SMT_HT1621 COB+PIN
Key Features of TN Negative LCD
Inverted Polarity
  • In a negative TN LCD, the liquid crystals are twisted in a way that, when no voltage is applied, the display remains dark, and the text or segments become visible when voltage is applied.
  • This results in a dark background with light characters, giving a negative image effect (similar to negative film photography).
TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621 0 TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621 1 TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621 2
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. About the package way, it is up to the size of products, according to customer request and demand. Different countries have not same requirement.
TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621 3
Shipping: Express way as DHL, Fedex, EMS, UPS, air shipping, sea shipping. Any shipping method you prefer.
TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621 4
Payment Method
TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621 5
CHARACTER / GRAPHIC TYPE LCD MODULES LIST
Model Content (W X H) Module size W x H(mm) View area W x H(mm) Dot size W x H(mm) Dot pitch W x H(mm) Driving Method Controller LSI or Equiv IC Package STN-TYPE FSTN-TYPE
8D -C2004A 20X4 98.0X60.0 76.0X25.2 0.55X0.55 2.95X4.75 1/16 S6A0069 COB Y Y

TN LCD Screen 7 Segment Display With Dark Background White Backlight SMT_HT1621 6
