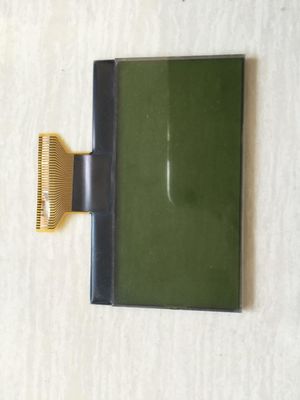

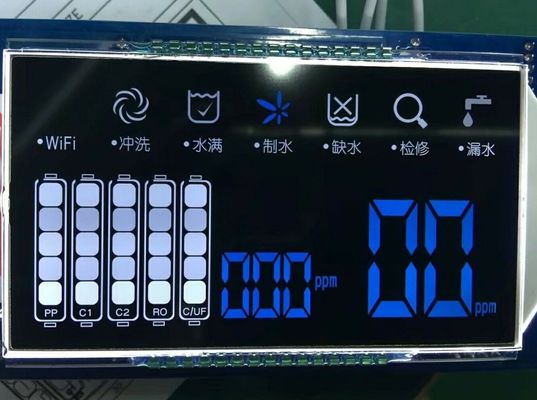

Custom 7 Segment LCD Display SMMC13264-AI-00-SYA 6.00 O' CLOCK STN-Y/G Positive Reflective
General Specification
| PART NUMBER |
SMMC13264-AI-00-SYA |
| DISPLAY FORMAT |
132*64DOTS |
| SUPPLY VOLTAGE FOR LOGIC |
3.0V |
| DISPLAY TYPE |
STN-Y/G, POSITIVE, REFLECTIVE |
| VIEWING DIRECTION |
6.00 O' CLOCK |
| LCD DRIVING METHOD |
1/65 DUTY, 1/9 BIAS, 9.2V (J6392) |
| CONNECTION |
COG+FPC |
| LCD DRIVER IC |
ST7565R |
| INSPECTION STANDARD OF LCD |
A STANDARD |
| INSPECTION STANDARD OF RoHS |
RoHS COMPLIANCE |
Absolute Maximum Ratings
| Item |
Symbol |
MIN |
Max |
Unit |
| Supply Voltage |
VDD |
-0.3 |
3.6 |
V |
| VOUT |
- |
-0.3 |
13.5 |
V |
| Operating temperature |
Topr |
-20 |
70 |
℃ |
| Storage temperature |
Tstr |
-30 |
80 |
℃ |
Electrical Characteristics of LCM
(Unless specified, the ambient temperature Ta=25℃)
| Item |
Symbol |
Condition |
Min. |
Type |
Max. |
Unit |
| Supply Voltage |
VDD |
VDD-VSS |
2.9 |
3.0 |
3.1 |
V |
| LCD |
VLCD |
Ta=25℃ |
9.0 |
9.2 |
9.4 |
V |
| Input Voltage H level |
VIH |
- |
0.8*VDD |
- |
VDD |
V |
| Input Voltage L level |
VIL |
VSS |
- |
0.2*VDD |
- |
V |
| Current Consumption (LCD Drive) |
IDD |
- |
-- |
- |
2.0 |
mA |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express options include DHL, Fedex, EMS, UPS, air shipping, and sea shipping. We accommodate preferred shipping methods.
Payment Method
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: Please send your specification/drawing or samples. We can recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires new tooling for a custom LCD glass module.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can customize based on your drawing or specifications including outline size, display information, glass thickness, polarizer, connector mode, temperature range, voltage, and viewing direction.
5. What is leading time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon order.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Leading Time?
Answer: Standard items in stock ship within 1 day after payment. Custom production typically takes 15-30 days, with updates provided if completed earlier.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product issues
- Custom logo and model number printing available
- Discounted shipping rates through established partnerships
- Professional technical support and after-sales service
- All products inspected and tested before shipment
- 24-hour response time for customer inquiries
- Custom LCD display solutions based on your specifications
Product Applications
- Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, washing machines, microwave ovens, rice cookers
- Communication equipment: Telephones, interphones, fax machines, wireless wifi
- Automotive electronics: Entertainment systems, navigators, car audio, reverse radar, cameras
- Instruments: Water meters, electric meters, multimeters, electronic scales, pressure meters
- Fitness equipment: Treadmills, fitness bikes, training devices, pedometers
- Financial: Tax control machines, POS systems, banknote counting machines
- Consumer electronics: MP3/MP4 players, DVD players, electronic dictionaries, calculators
Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range (-20℃ to 70℃), positive/negative display options.
