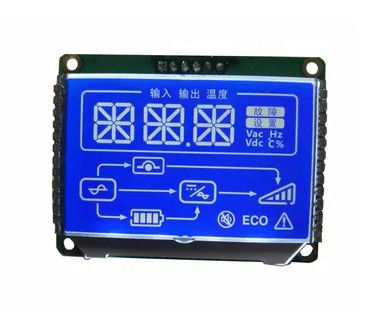

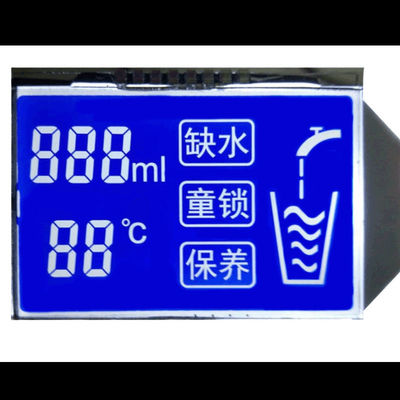

STN Negative 7 Segment LCD Display 3.3 V LCD Display With PIN Connector
Advantages of STN Segment LCDs
- Better Contrast: Compared to regular TN displays, STN displays provide much higher contrast, making the text and numbers sharper and clearer.
- Improved Viewing Angles: STN displays offer wider viewing angles, which is especially beneficial for applications where the display needs to be read from different angles.
- Color Options: STN displays can be designed to support two colors (monochrome plus a secondary color) or even inverted colors, such as light characters on a dark background or dark characters on a light background.
- Power Efficient: Like most LCDs, STN segment displays use very little power, making them ideal for portable or battery-powered devices.
- Cost-Effective: STN technology is still less expensive than newer technologies like IPS and OLED while offering substantial improvements over TN in terms of visibility.
Detailed Parameters
| Model number |
BBI88128-54 |
LCD type |
Segmented Display |
| Module Size |
60(W)* 46(H)* 14.1(T) mm |
Display mode |
STN, Negative |
| LCD viewing area |
50(W)* 31(H) mm |
Polarizer type |
Transmissive |
| Driver IC |
HT1621 |
LED backlight |
White |
| Drive method |
1/4 Duty, 1/3 Bias |
Working voltage |
3.3V |
| Viewing angle |
12 O'clock |
Connection Way |
PIN, 24 numbers |
| Operate temperature |
0℃~+50℃ |
Storage temperature |
-10~+60℃ |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. The packaging method depends on product size and customer requirements. Different countries have different packaging requirements.
Shipping: Express options include DHL, Fedex, EMS, UPS, air shipping, and sea shipping. Any shipping method can be arranged according to customer preference.
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Firstly, please kindly send us your specification/drawing paper. If you don't have the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For the segment type LCD module, if you need to modify the outline size or display content, a new LCD glass module is needed. We have to open new tooling for you.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: That's all right. We can change for you as per your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing paper. If you don't have one, please advise us the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp, Operating Temp, Supply Voltage, Viewing direction, drive condition), we can customize for you.
5. What is the lead time for tooling?
Answer: Generally speaking, it will take 15 to 25 days after drawing paper confirmation and tooling charge payment. We can report the exact time when you confirm the drawing paper.
6. Can you send us samples for checking?
Answer: Yes. Samples order is available.
7. What is the Lead Time?
Answer: If we have stock for the standard ones, the lead time is one day after payment. If it is the mass production for special ones, the lead time is about 15-30 days. If we can finish earlier, we will report the information in advance.
Our Services
- Free repair within one year after the shipment of products from us.
- Replacement within 30 days after the shipment of products from us due to products' problems.
- We can print your logo and stick your model No. on the cameras.
- We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
- Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
- All goods will be inspected and tested by our engineers and QC/QA before packing and shipment.
- Customer satisfaction is most important to us. If you have any problem or questions regarding our transaction, please contact us by Email or online. It will be responded within 24 hours.
- Products pictures are only for your reference. Please kindly refer to the specification. We can provide the products based on the specification. Or you can offer your own specification or drawing, we can customize all kinds of LCD displays for you.
Products Application Field
Audio products, Medical Equipment, Industrial products (water meter, electronic meter, Equipment), Automobiles, Sports Equipment, Watches, Household appliances (air condition, wash machine, electronic cooler, refrigerator, disinfection cabinet, wash bowl machine, calculator, electronic scale etc.)
