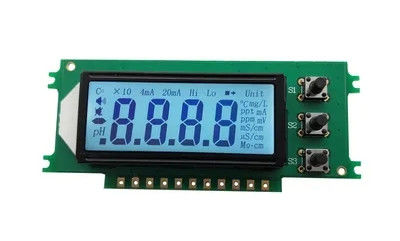

HT1621 4 Digit 7 Segment LCD Display Module FSTN Screen With White Backlight
Product Description
HT1621 4 Digit 7 Segment LCD Display FSTN Screen With White Backlight
Key Features of FSTN Segment LCDs
FSTN Technology
FSTN is a refinement of the STN technology, where a compensating film is applied to the display to improve the optical performance. This film layer compensates for some of the optical limitations of the twisted nematic liquid crystals, especially in terms of contrast and viewing angles.
The compensating film helps enhance the brightness and reduce color distortion, resulting in a more readable display, particularly in low-light environments.
In FSTN LCDs, the liquid crystals are still twisted, but the addition of the film layer improves how the liquid crystals interact with light, resulting in a clearer and sharper display.
Detailed Parameters
| Model number |
BBI88128-340 |
LCD type |
Segmented Display |
| Module Size |
88.5(W)* 37(H)* 13(T) mm |
Display mode |
FSTN, Positive |
| LCD viewing area |
49(W)* 18(H) mm |
Polarizer type |
Transmissive |
| Driver IC |
HT1621 |
LED backlight |
White, 2pcs, 30mA |
| Drive method |
1/4 Duty, 1/3 Bias |
Working voltage |
5.0V |
| Viewing angle |
12 O'clock |
Connection Way |
COB+Zebra |
| Operate temperature |
-10℃~+60℃ |
Storage temperature |
-20~+70℃ |
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, which may vary by country.
Shipping: Express options include DHL, Fedex, EMS, UPS, as well as air and sea shipping. We accommodate preferred shipping methods.
Payment Method
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If you don't have specifications, you can provide samples; we'll recommend suitable standard products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with new tooling.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can. Please send your drawing. If unavailable, provide outline size, display information (glass thickness, polarizer, display type, connector mode, storage/operating temperature, supply voltage, viewing direction, drive condition).
5. What is lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact time will be confirmed after drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: For standard products in stock: 1 day after payment. For mass production of special orders: 15-30 days. We'll inform you if we can complete earlier.
Our Services
- Free repair within one year after shipment
- Replacement within 30 days for product-related issues
- Custom logo and model number printing available
- Discounted shipping rates through our partner carriers
- Professional technical support and responsive after-sales service
- All products inspected and tested by engineers before shipment
- 24-hour response time for inquiries and issues
- Custom LCD display solutions based on your specifications
