Home /Products/Round TFT LCD Display/SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240

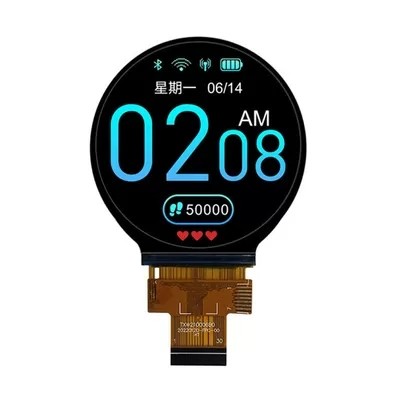

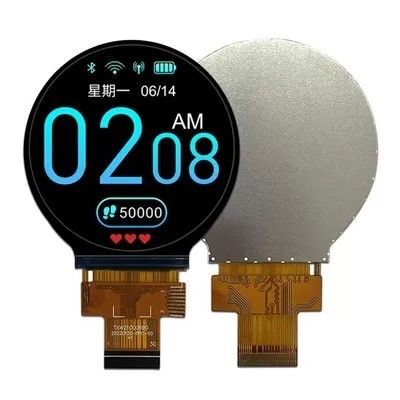

SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240

1000
MOQ
DISCUSSABLE
Price
SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240
Features Gallery Product Description Chat Now
Features
Specifications
Touch Screen: Yes
Response Time: 5ms
Active Area: 27.72(W)×27.72(H)
Interface: SPI
Operating Temp: -20℃~ + 70℃
Module Size: φ49.8×3.52(T) M
Highlight:

1.54 inch round TFT LCD display

,

SPI interface IPS LCD screen

,

240x240 resolution round display
Basic Infomation
Place of Origin: China
Brand Name: BBI
Certification: ISO9001 RoHS
Payment & Shipping Terms
Packaging Details: CARTON
Delivery Time: 3-4WEEKS
Payment Terms: T/T
Supply Ability: 100000/MONTH
Product Description
SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240
SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB) ×240
Product Details
Detail Information
Size: 1.54" TFT
Dot Arrangement: 240(RGB)×240
Viewing Direction: IPS
Module Size: φ49.8×3.52(T) M
Active Area: 27.72(W)×27.72(H)
Interface: SPI
Operating Temperature: -20 ~ +70
Storage Temperature: -30 ~ +80
Highlight: 1.54 Inch Round TFT Display, NT7789V Round LCD Screen, NT7789V Round TFT Display
Product Specification
  • The TFT is 1.54 inch screen, the resolution is 240×240, with IPS effect
  • Composed of cover plate + LCD + driver IC + backlight + FPC
  • The cover plate of this product matches the LCD display area in black color
  • Designed for use in "fresh-keeping box" applications with special requirements: LCD brightness 1200cd/m², low cover plate transmittance resulting in overall brightness of 100cd/m² after assembly
  • Customizable options available: backlight / FPC / cover / touch
  • SGS and CE compliant
SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240 0 SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240 1
Packaging & Shipping

Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method depends on product size and customer requirements, with variations according to different countries' regulations.

SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240 2

Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping. Any preferred shipping method can be accommodated.

SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240 3
Payment Method
SPI Interface 1.54 Inch IPS Round TFT LCD Display 240(RGB)×240 4
FAQ
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
Answer: No problem. Please send us your specification/drawing. If unavailable, you can provide samples and we'll recommend suitable products or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
Answer: For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with custom tooling.
3. This LCD display is HTN type, but I want STN type, can you make?
Answer: Yes, we can modify the display type according to your request.
4. I want to customize a new LCD module. Can you do?
Answer: Yes, we can customize. Please send your drawing or provide specifications including outline size, display information, glass thickness, polarizer type, display type, connector mode, temperature ranges, viewing direction, and drive conditions.
5. What is lead time for tooling?
Answer: Typically 15-25 days after drawing confirmation and tooling payment. Exact timeline will be confirmed upon drawing approval.
6. Can you send us samples for checking?
Answer: Yes, sample orders are available.
7. What is the Lead Time?
Answer: For standard products in stock: 1 day after payment. For special mass production: 15-30 days (we'll inform you if completed earlier).
Our Services
  • Free repair within one year after shipment
  • Replacement within 30 days for product-related issues
  • Custom logo and model number printing available
  • Preferred shipping rates through established partnerships
  • Professional technical support and responsive after-sales service
  • All products inspected and tested by engineers before shipment
  • 24-hour response to customer inquiries
  • Customization services available based on customer specifications
Product Applications
  • Household appliances: Refrigerators, air conditioners, fans, heaters, water heaters, electric blankets, air purifiers, washing machines, dryers, vacuum cleaners, microwave ovens, cookers, rice cookers, etc.
  • Communication equipment: Telephones, interphones, fax machines, wireless wifi devices
  • Automotive electronics: Entertainment systems, car navigation, audio systems, reverse radar, cameras, anti-theft devices
  • Instruments: Water meters, electric meters, multimeters, electronic scales, pressure/temperature/flow meters, analytical instruments
  • Fitness equipment: Treadmills, exercise bikes, training devices, pedometers, weighing scales
  • Financial equipment: Tax control cash machines, POS systems, cheque printers, banknote counters
  • Consumer electronics: MP3/MP4 players, DVDs, electronic dictionaries, e-readers, learning machines, electronic clocks, calculators

Features: High resolution, high definition, high brightness, cost-effective, energy efficient, wide temperature range operation (positive/negative)
