Features

Specifications

Name: Round TFT LCD Display

Touch Ic: ST1624i

Panel Type: IPS

Touch Screen: Yes

Active Area: 32.4(W)* 32.4(H) Mm

Power Supply: 2.8-3.3V

Viewing Angle: ALL

Highlight:

1.28 Inch Round TFT LCD Display

1.28 TFT Display

1.28 Inch Round LCD IPS Display Module 240240

Basic Infomation

Place of Origin: China

Brand Name: BBI

Certification: ISO9001 RoHS

Payment & Shipping Terms

Packaging Details: CARTON

Delivery Time: 3-4WEEKS

Payment Terms: T/T

Supply Ability: 100000/MONTH

Gallery

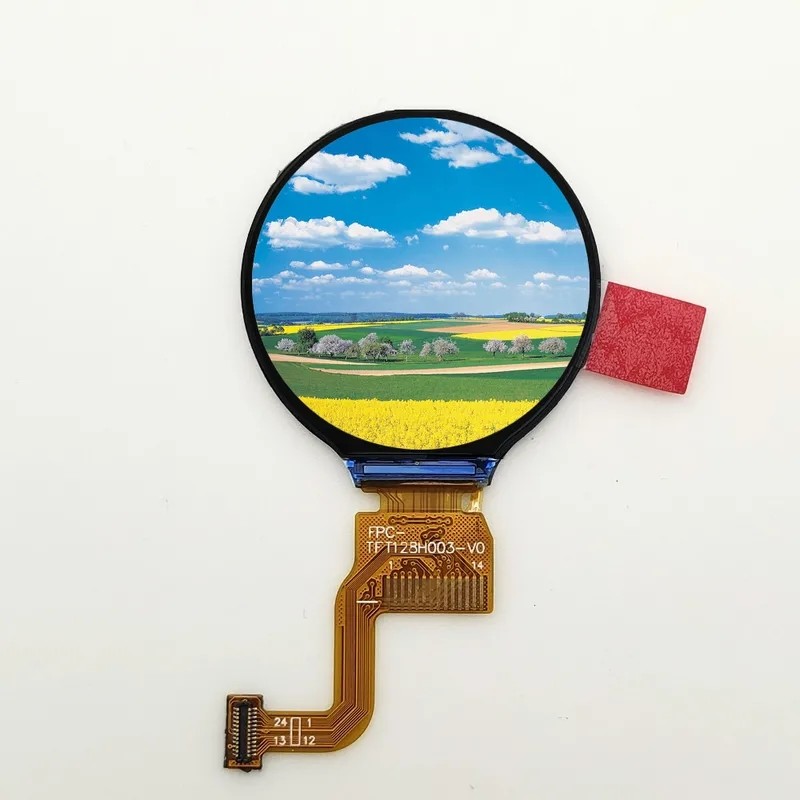

1.28 Inch Round TFT LCD Display 240x240 GC9A01 24PIN FPC SPI Interface

Product Description

1.28 Inch Round TFT LCD Display 240x240 GC9A01 24PIN FPC SPI Interface

High-performance 1.28-inch round TFT LCD display with 240x240 resolution, featuring GC9A01 driver IC and SPI interface.

Technical Specifications

NO.	ITEM	SPECIFICATIONS
1	Product Name	1.28-inch RGB Color Circle TFT LCD Display
2	Display Mode	Normal black
3	Viewing Direction	All
4	Resolution	240x240 dots
5	Display Color	262K
6	Operating Temperature	-20~+70℃
7	Storage Temperature	-30~+80℃
8	FPC Connector	24 pins, ZIF type
9	Contrast Ratio	1100
10	Interface	4 SPI
11	Backlight Type	2 LEDs, White
12	Brightness	250 cd/m2
13	Outline Dimension	35.6(W)* 38.1(H)* 1.6(T) mm
14	Active Area	32.4(W)* 32.4(H) mm
15	Working Voltage	2.8-3.3V
16	Touch Panel	Optional

LCD Type:	TFT
Panel Size:	1.28 Inch(Diagonal)
LCD Resolution:	240x240 Dots
Panel Type:	IPS
Driver IC:	GC9A01
Interface:	4 SPI
Luminance:	250 Cd/M2

Frequently Asked Questions

I want the LCD display 8 digits and the outline size is 65x30x2.8mm?

No problem. Firstly, please kindly send us your specification/drawing paper. If you have not the specification, you can also provide your samples; we will recommend the suitable one if it is standard products. Or we can customize for you based on your own requirement.

This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.

For the segment type LCD module, if you need modify the outline size or display content, a new LCD glass module is need. We have to open new tooling for you.

This LCD display is HTN type, but I want STN type, can you make?

That's all right. We can change for you as per you request.

I want customize a new LCD module. Can you do?

Yes, we can. Please send your drawing paper. If you have not, please advise me the outline size of the LCD display, display information (Glass thickness, Polarizer, Display Type, Connector mode, Storage Temp. Operating Temp. Supply Voltage, Viewing direction, drive condition), we can customize for you.

What is leading time for tooling?

General speaking, it will cost 15 to 25 days after drawing paper confirmation and tooling charge payment, we can report you the exact time when you confirm the drawing paper.

Can you send us samples for checking?

Yes. Samples order is available.

What is the Leading Time?

If we have stock for the standard ones, the leading time is one day after payment. If it is the mass production for special ones, the leading time is about 15-30 days. Suppose we can finish earlier, we will report the information in advanced.

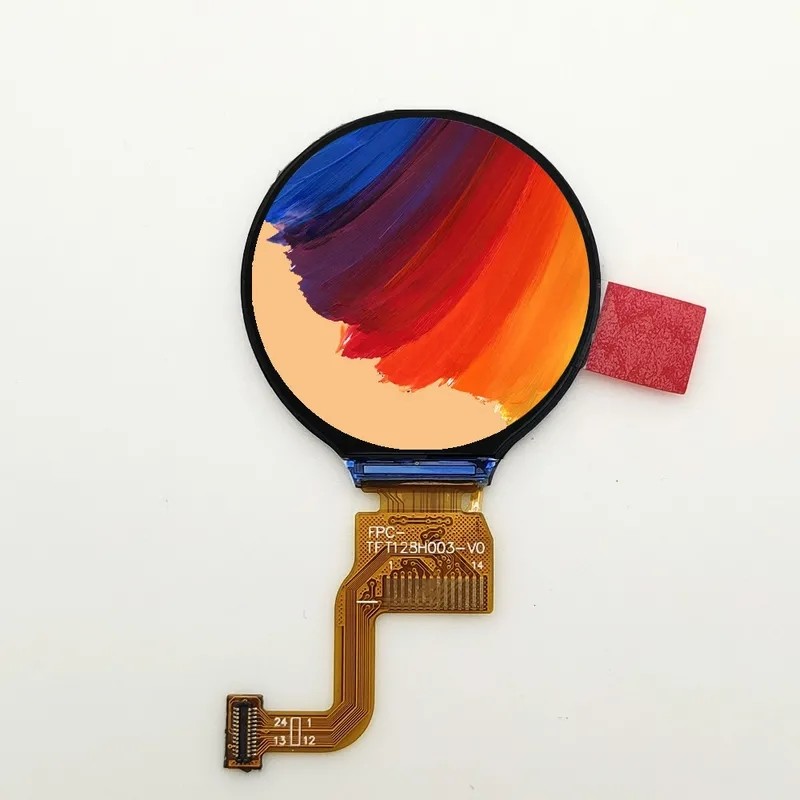

1.28 Inch Round TFT LCD Display 240x240 GC9A01 24PIN FPC SPI Interface 2
